Home >> Saturn >> 2002 >> Vue 2.2 D, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Diagnostics >> Power Windows >> Switch Continuity Check - Master Window Switches

Switch Continuity Check - Master Window Switches

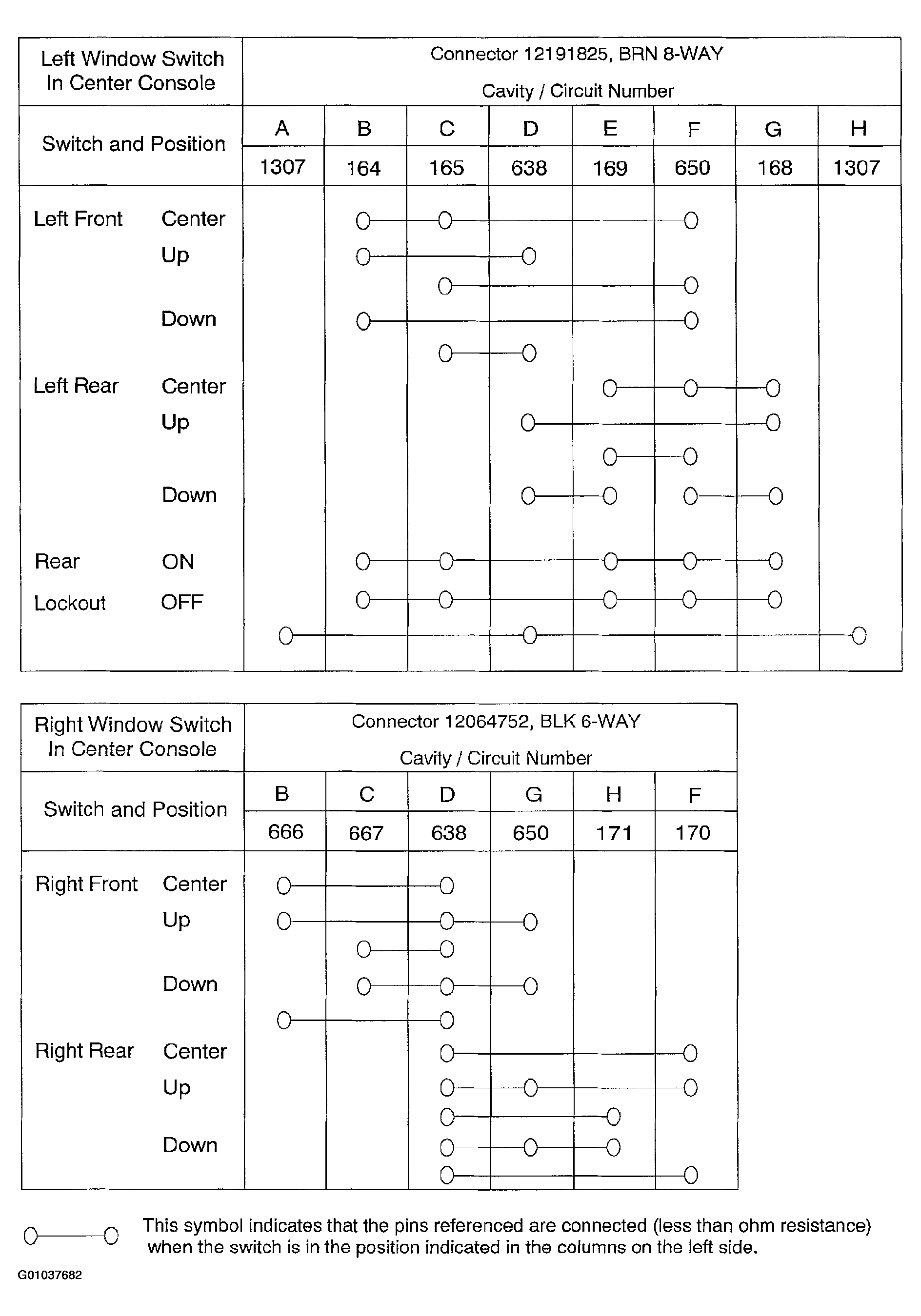

Fig 1: Switch Continuity Check - Master Window Switches

G01037682

Courtesy of GENERAL MOTORS CORP.
