Chart 7 - Temperature Display Inoperative/Inaccurate ONSTAR Mirror
Chart 7 - Temperature Display Inoperative/Inaccurate ONSTAR Mirror

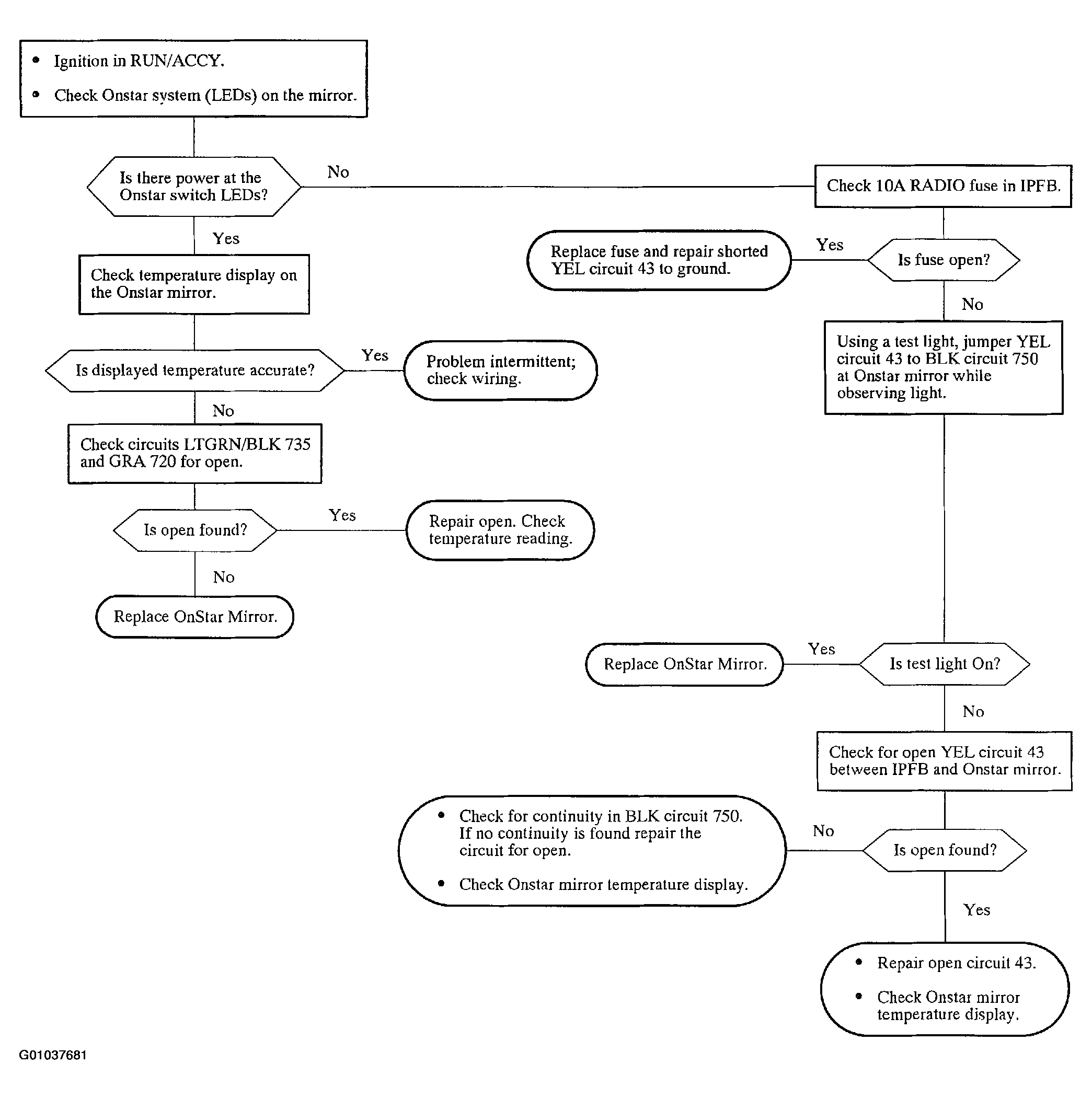

Fig 1: Temperature Display Inoperative/Inaccurate Onstar Mirror Testing Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
