Chart 3 - Only Left Front Or Only Right Front Window Inoperable

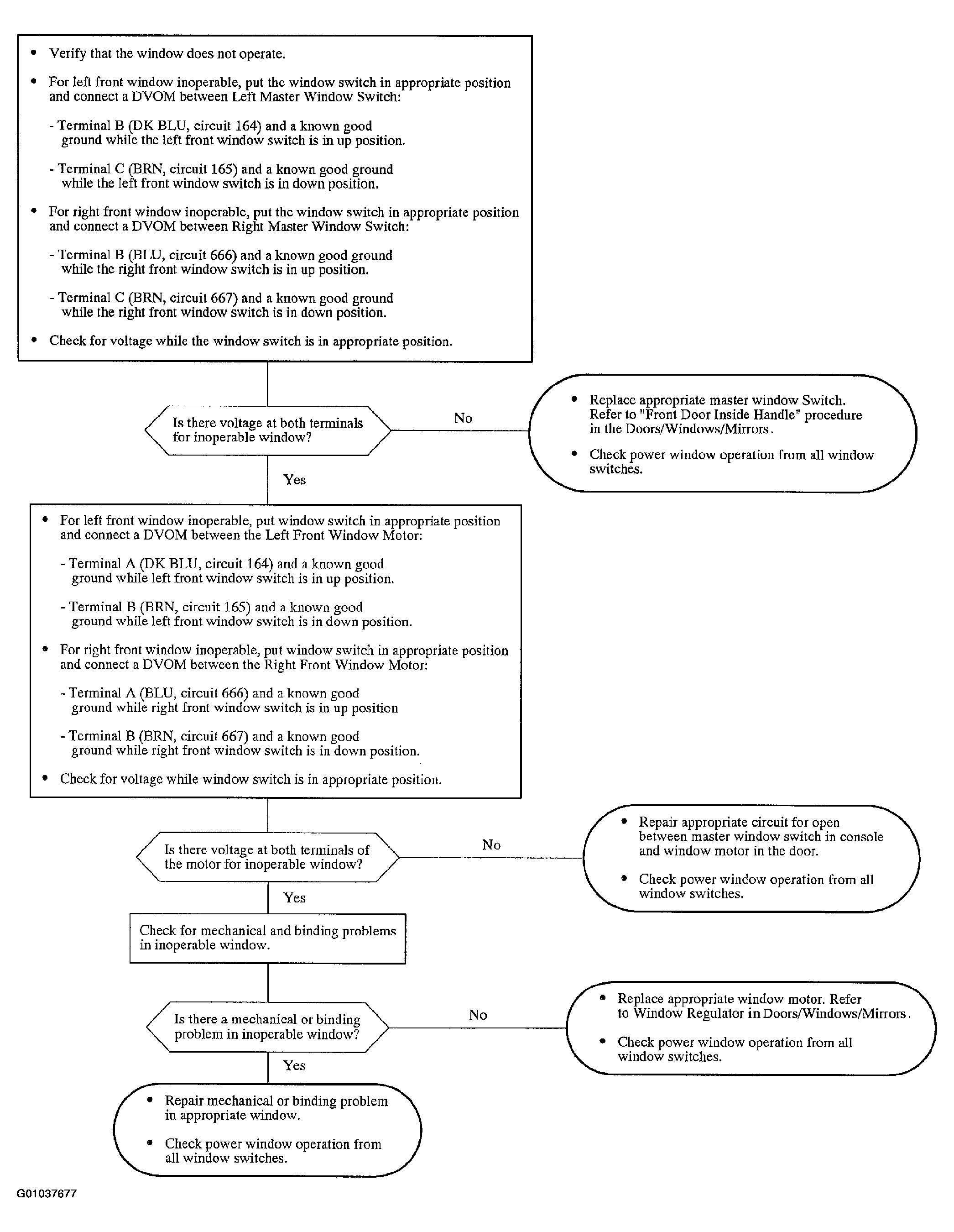

Fig 1: Only Left Front Or Only Right Front Window Inoperable Testing Flow Chart

G01037677

Courtesy of GENERAL MOTORS CORP.
