Chart 2 - Both Left Windows Inoperable Or Both Right Windows Inoperable

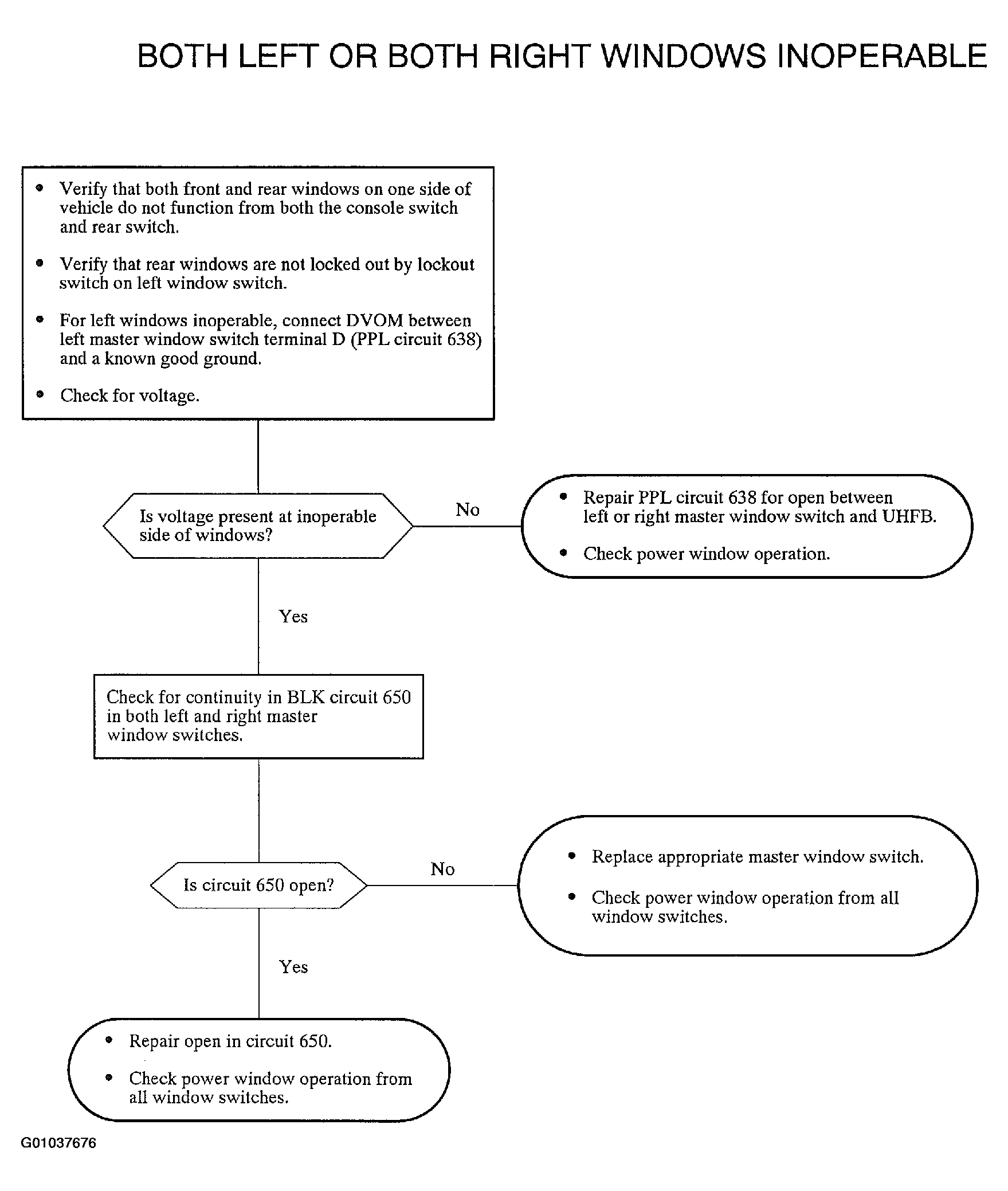

Fig 1: Both Left Or Both Right Windows Inoperable Testing Flow Chart

G01037676

Courtesy of GENERAL MOTORS CORP.
