Power Mirror Connector Face Views
Power Mirror Connector Face Views

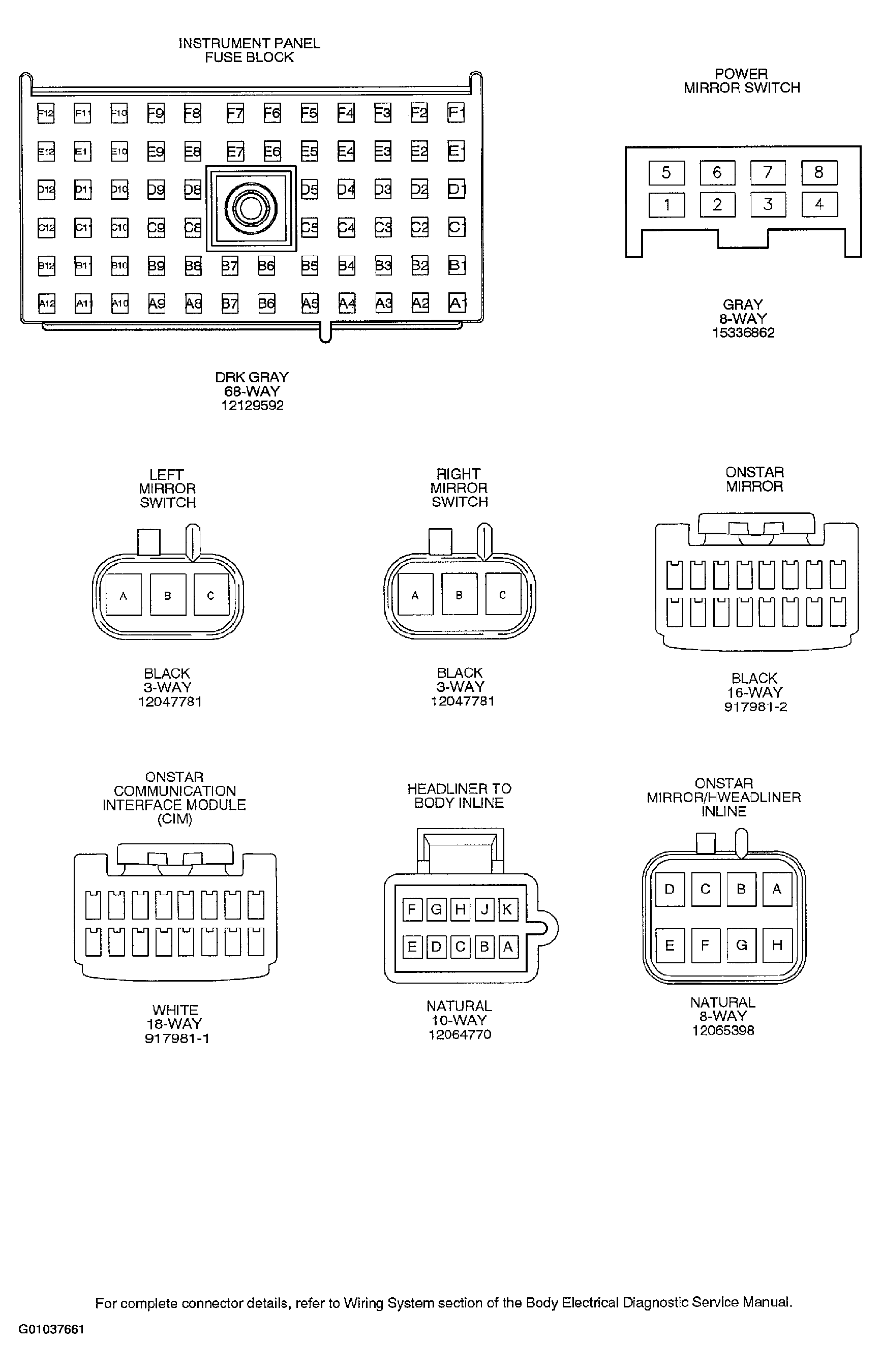

Fig 1: Power Mirror Connector Face Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
