Home >> Saturn >> 2002 >> Vue 2.2 D, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Diagnostics >> Component Locations - Doors/Windows/Mirrors

Component Locations - Doors/Windows/Mirrors

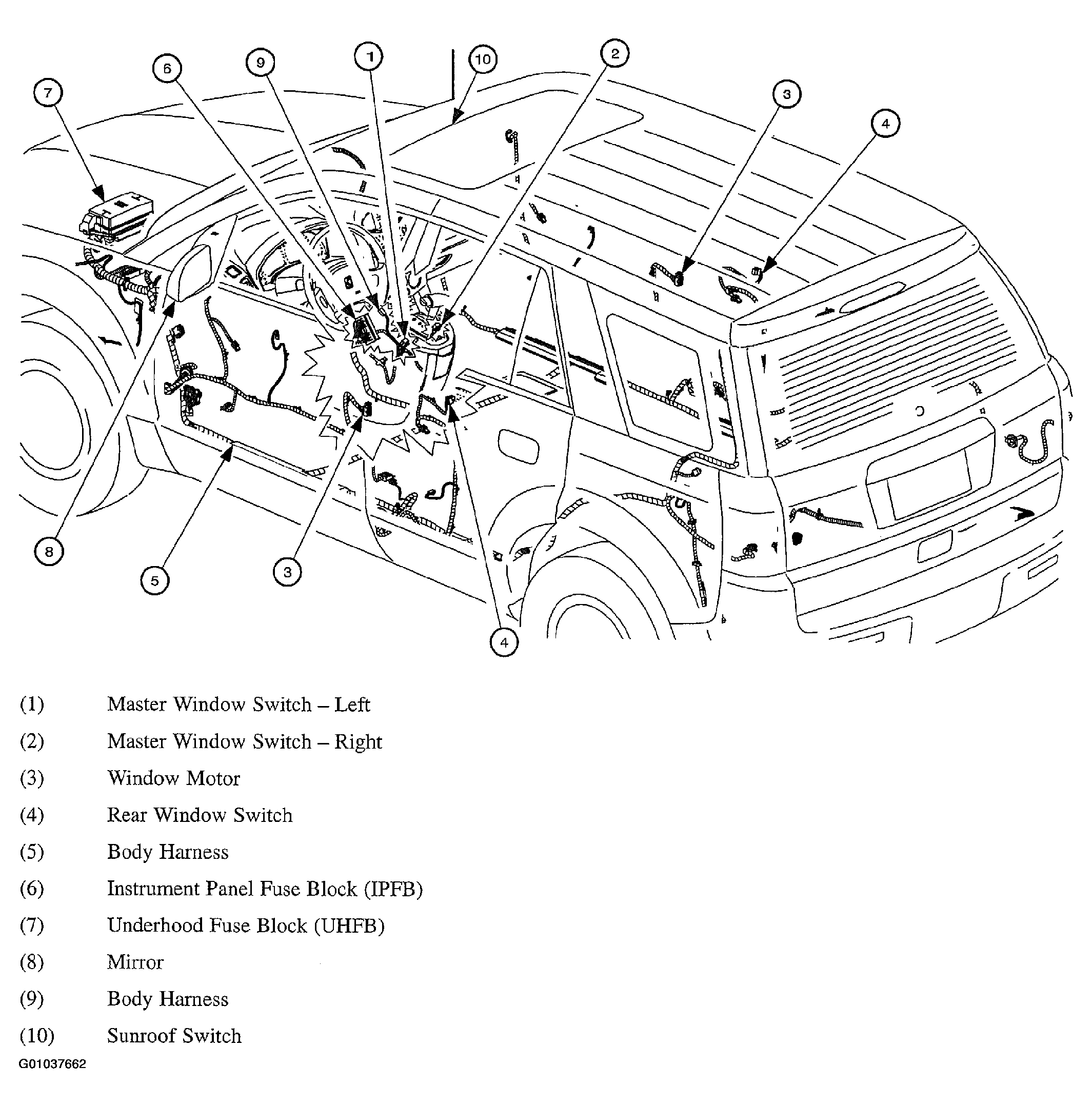

Fig 1: Component Locations

G01037662

Courtesy of GENERAL MOTORS CORP.
