Cruise Control System -- "S" Series
>>
Component Locator
>>
Cruise Control Component Views
Cruise Control Component Views

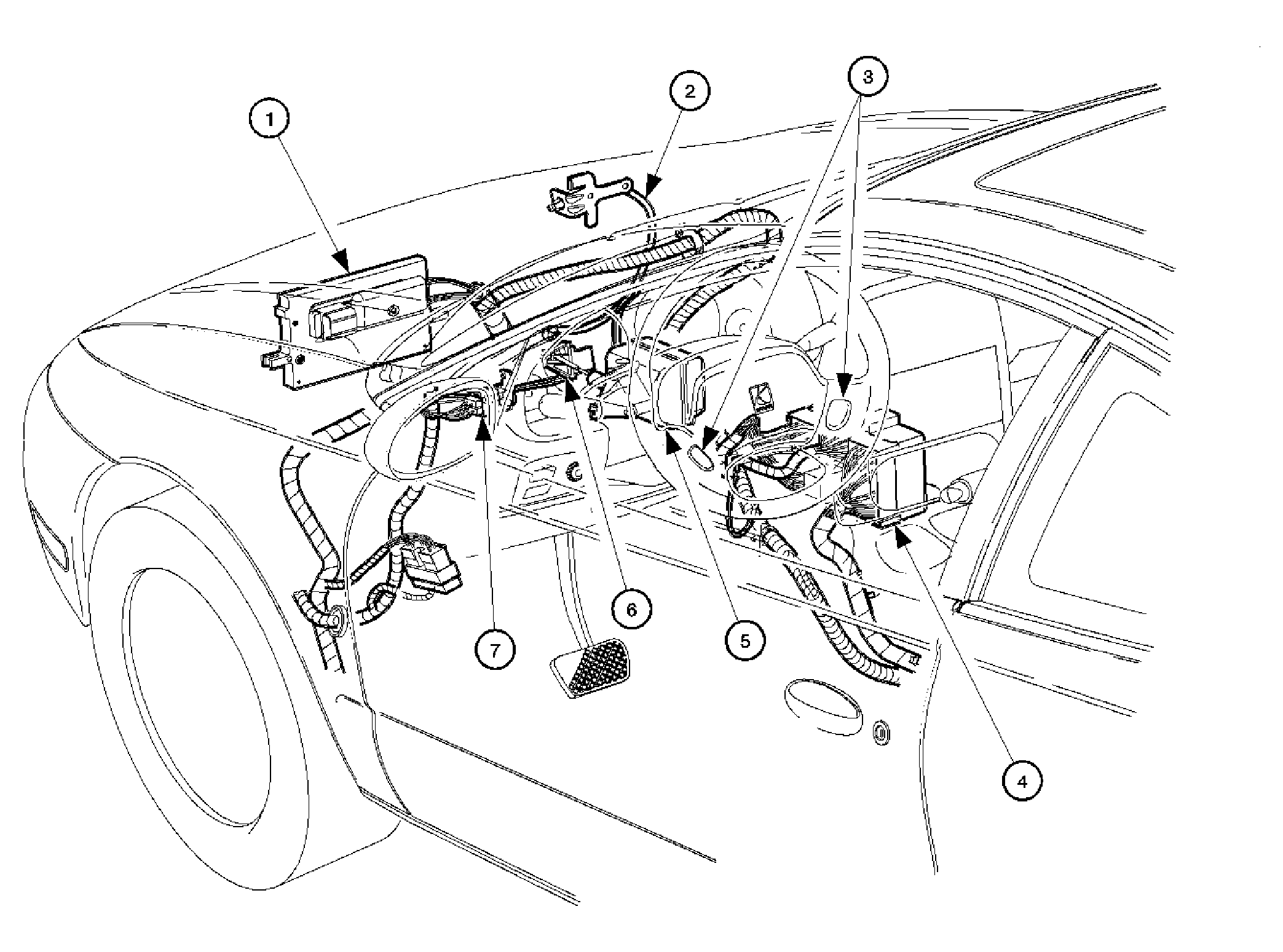

Fig 1: Cruise Control Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Powertrain Control Module (PCM)
2
Throttle Cable
3
Cruise Control Switches
4
Instrument Panel Fuse Block (IPFB)
5
Cruise Control Module
6
Cruise Control Rod
7
Stop Lamp Switch
