Control Lever Boot: Installation

  1. Install boot assembly to lever so the plastic tie strap is in groove on lever.
  2. Pull tie strap tight with pliers.
    Fig 1: Pulling Tie Strap
    G01069039Courtesy of GENERAL MOTORS CORP.

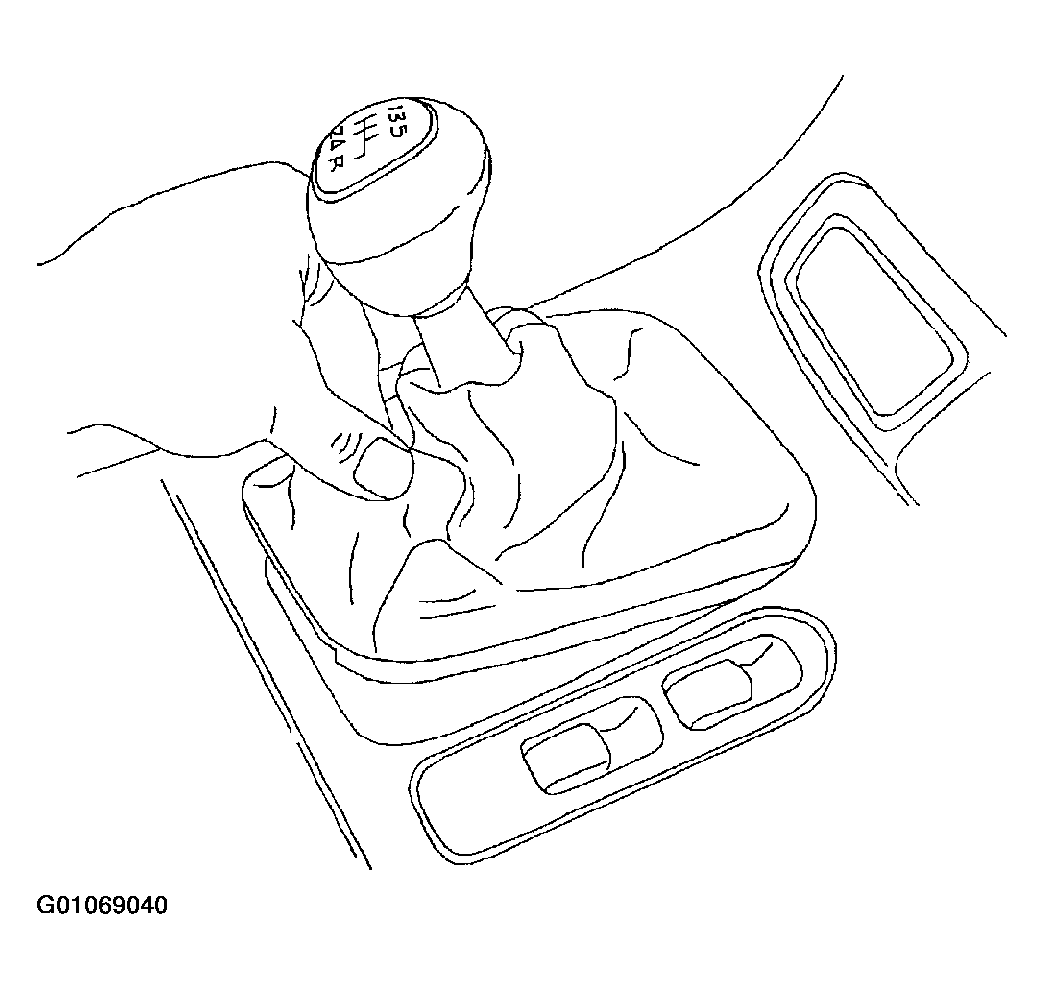

  3. Pull control lever boot down and snap boot into console opening.
    Fig 2: Control Lever Boot
    G01069040Courtesy of GENERAL MOTORS CORP.
