RKE/Security System Connector End View (2 Of 2)

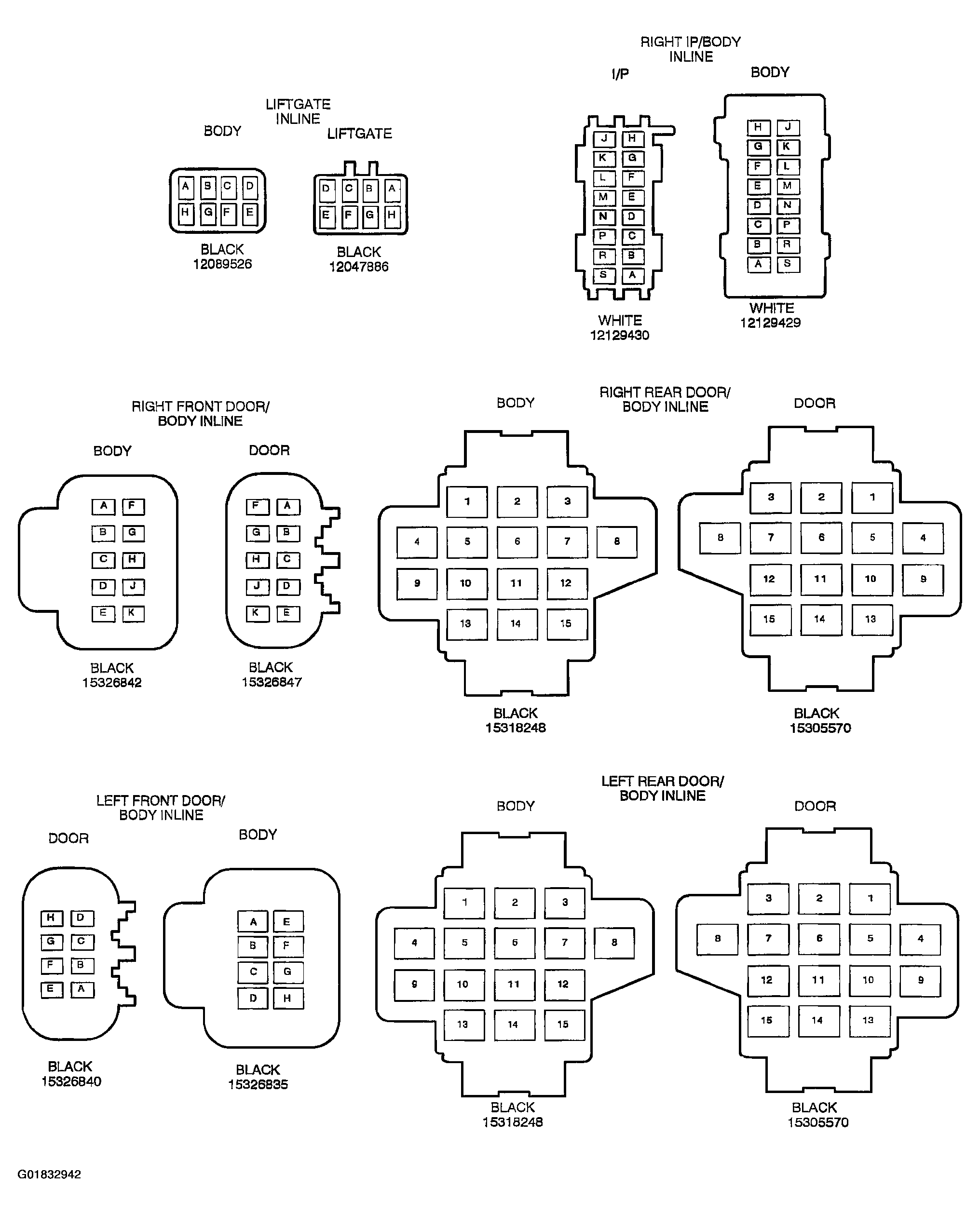

Fig 1: RKE/Security System (2 Of 2)

G01832942

Courtesy of GENERAL MOTORS CORP.
