Cigar Lighter/Auxiliary Power Connector End View

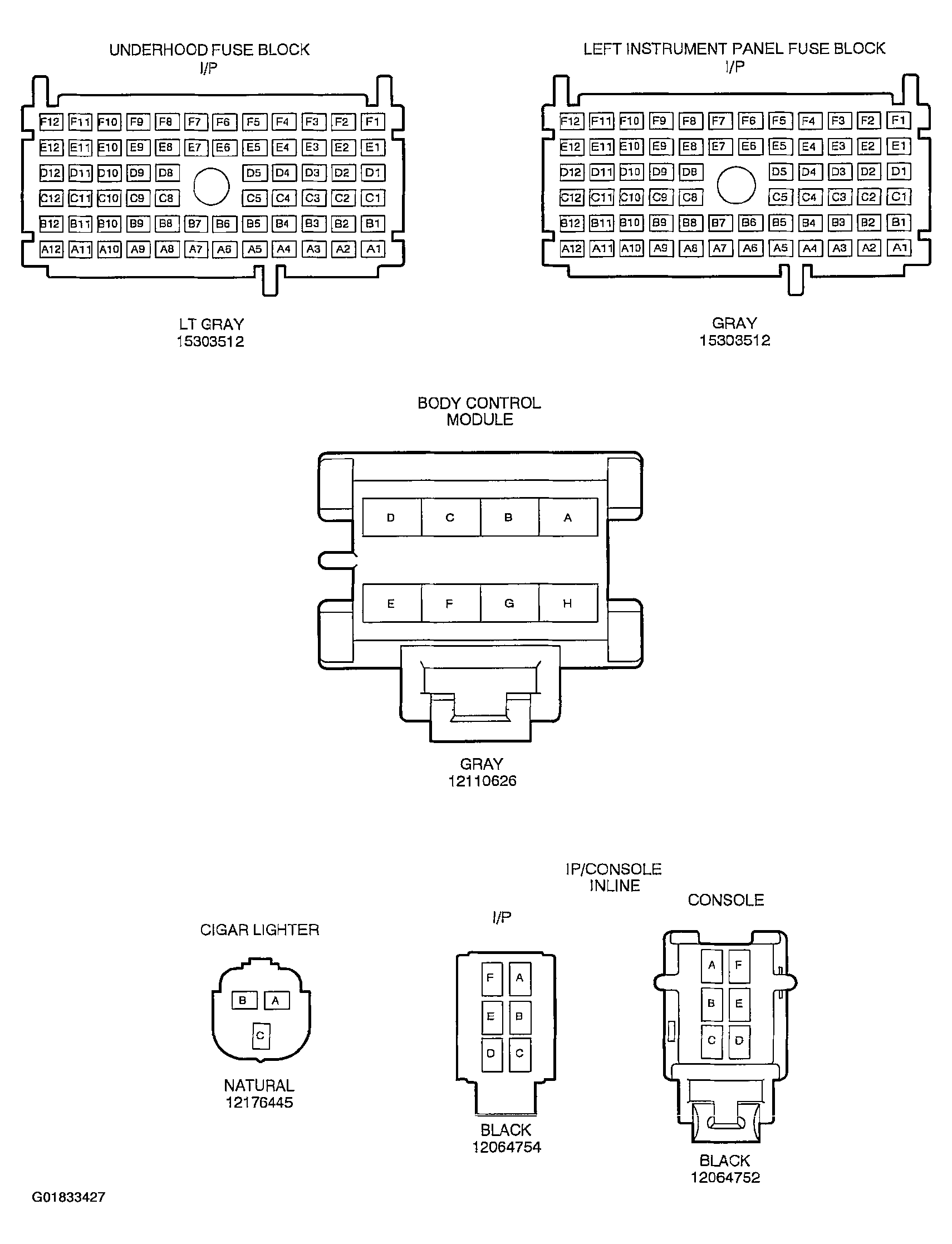

Fig 1: Cigar Lighter/Auxiliary Power

G01833427

Courtesy of GENERAL MOTORS CORP.
