Intake Plenum Replacement (In-Vehicle): Installation

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Install throttle body gasket to plenum.
Install throttle body to plenum.

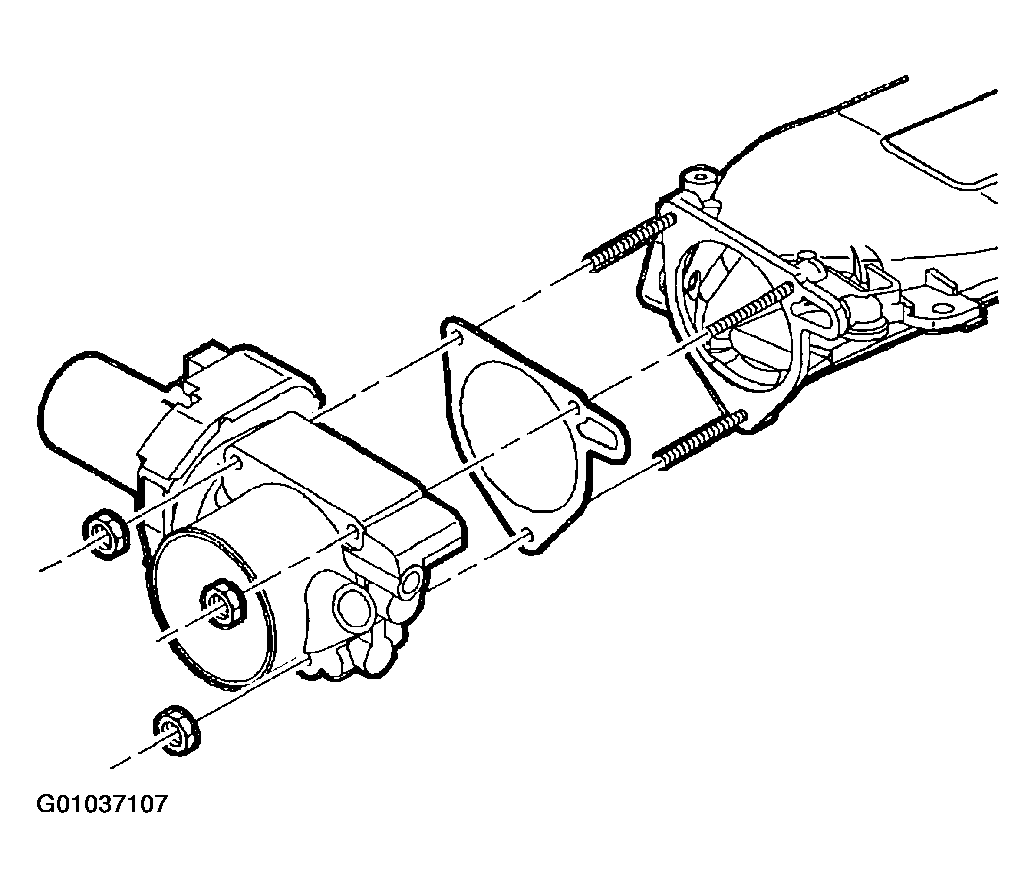

Fig 1: Installing Throttle Body
Courtesy of GENERAL MOTORS CORP.
Install throttle body nuts.
Torque:

Throttle Body Nut: 8 N.m (71 in-lbs)
Attach heater and vent hose to throttle body.
Install intake plenum and intake plenum bolts. Finger tighten bolts.

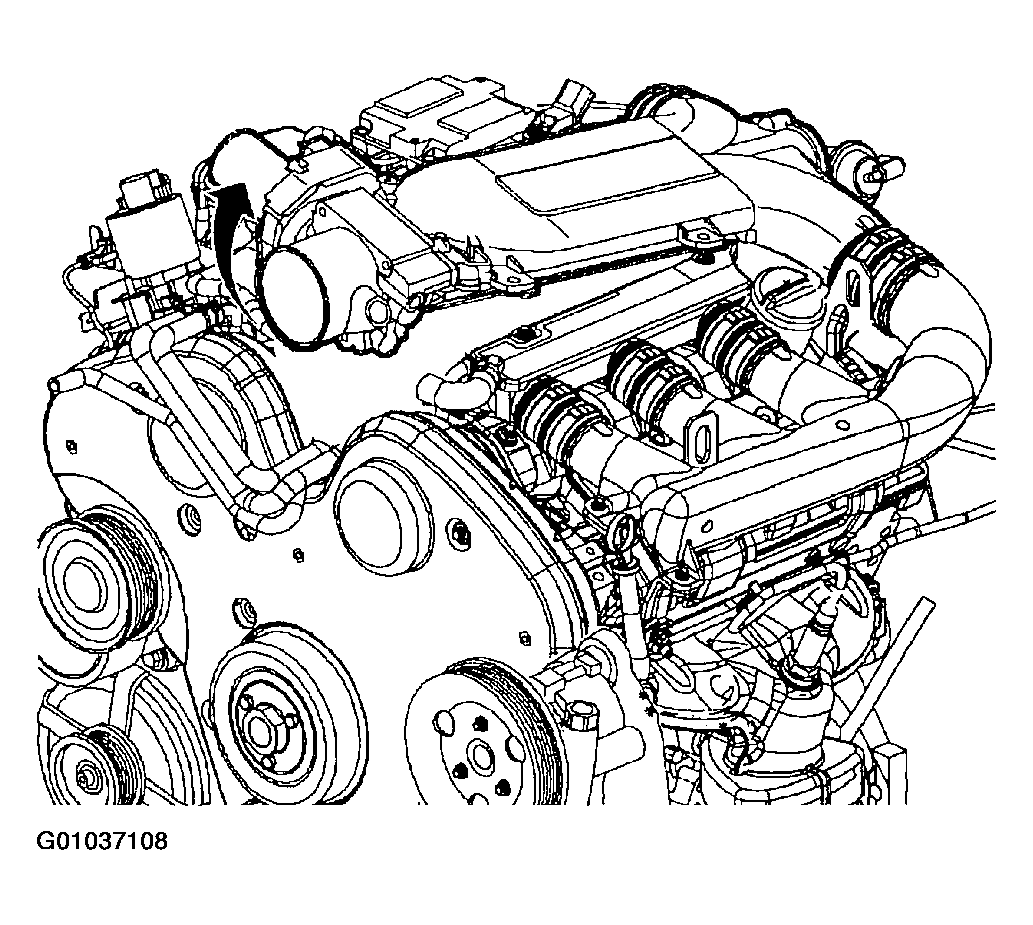

Fig 2: Installing Intake Plenum
Courtesy of GENERAL MOTORS CORP.
Install EGR pipe bolts.
Torque:

EGR Pipe Bolts: 25 N.m (19 ft-lbs)
Install intake plenum bolts.
Torque:

Intake Plenum Bolts: 8 N.m (71 in-lbs)
Install front manifold runner and tighten clamps.

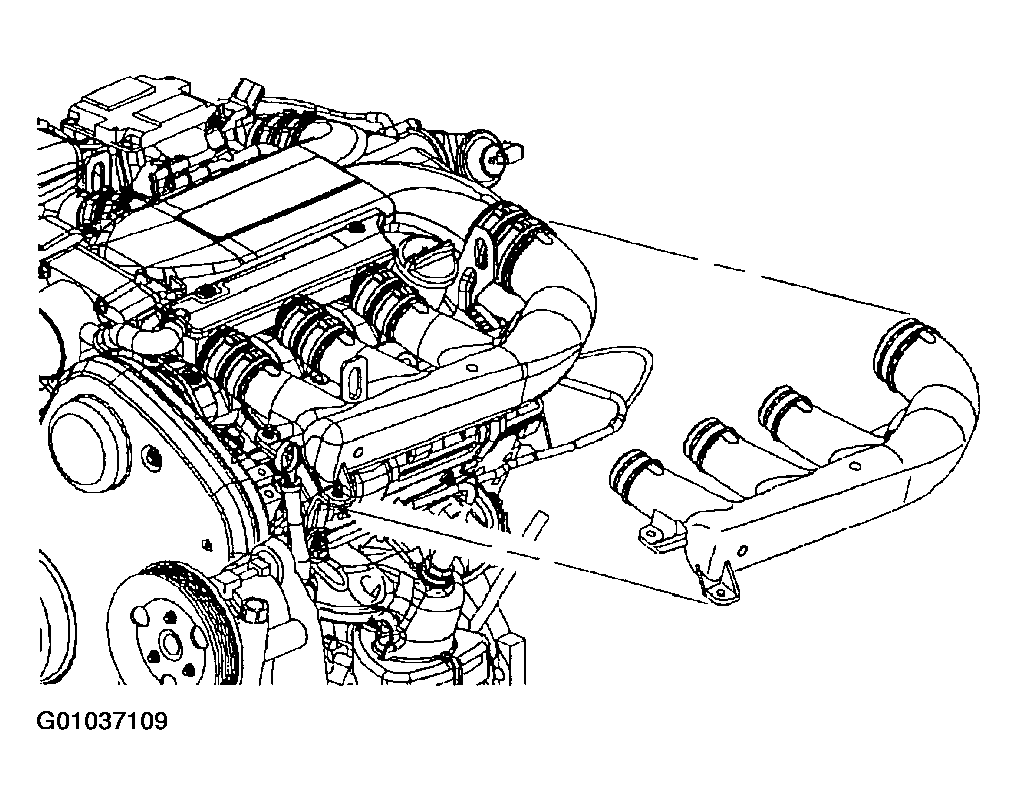

Fig 3: Reinstalling Front Intake Runner
Courtesy of GENERAL MOTORS CORP.
Install intake runner bolts.
Torque:

Intake Manifold Runner Bolts: 8 N.m (71 in-lbs)
Connect negative battery cable.
Torque:

Battery Terminal Bolts: 17 N.m (13 ft-lbs)
