Clean And Inspect
WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the following components:
- Use solvent to clean the engine block.
- Clean the gasket surfaces.
- Clean the coolant passages.
- Clean the oil passages.
- Inspect the following for cracks:
- Inspect the cylinder walls for cracks.
- Replace the engine block if any cracks are evident.
- Inspect the coolant jackets for cracks.
- Replace the engine block if any cracks are evident.
- Inspect the main bearing insert cavities for cracks.
- Replace the engine block if any cracks are evident.
- Inspect for the following in the cylinder walls:
- Inspect for gouges in the cylinder walls deeper than 0.05 mm (0.002 in.).
- Bore the cylinder if gouges are deeper than 0.05 mm (0.002 in.).
- Inspect for pitting in the cylinder wall deeper than 0.05 mm (0.002 in.).
- Bore the cylinder if pitting is deeper than 0.05 mm (0.002 in.).
- Inspect for scores is the cylinder wall deeper than 0.05 mm (0.002 in.).
- Bore the cylinder if scores are deeper than 0.05 mm (0.002 in.).

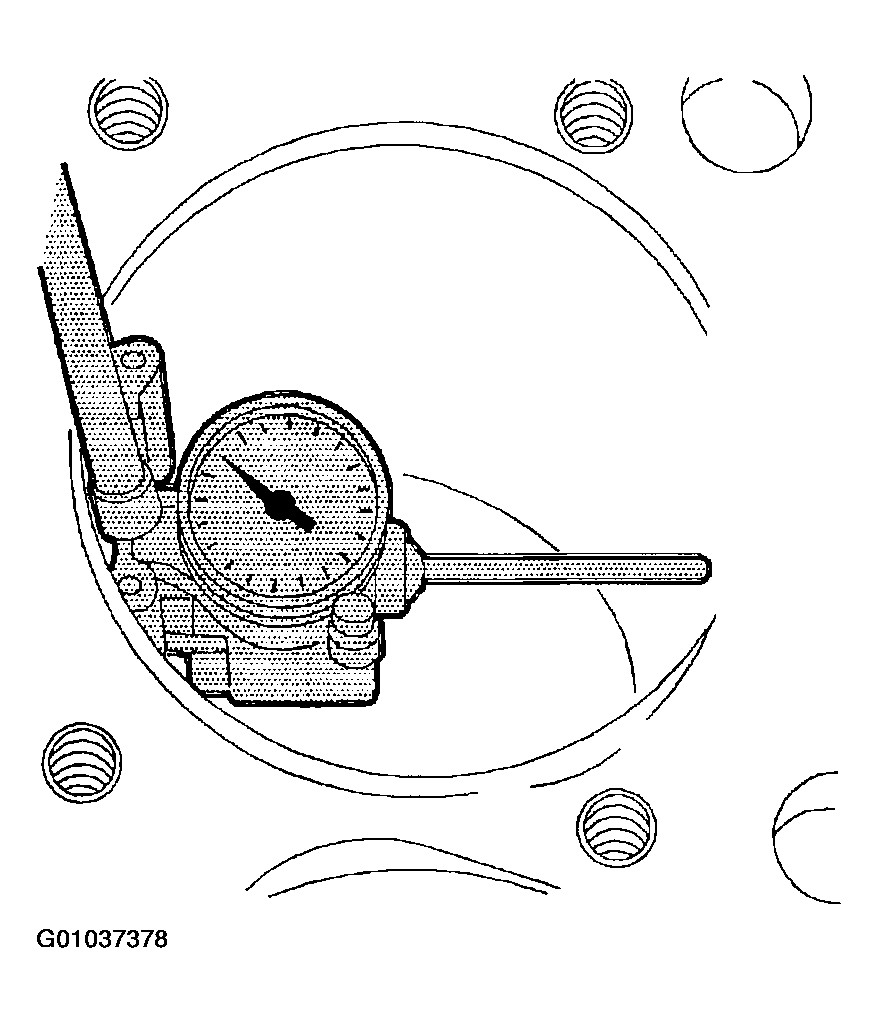

- Use a cylinder bore gauge to measure the cylinder bore for the following conditions:
- Measure for wear.

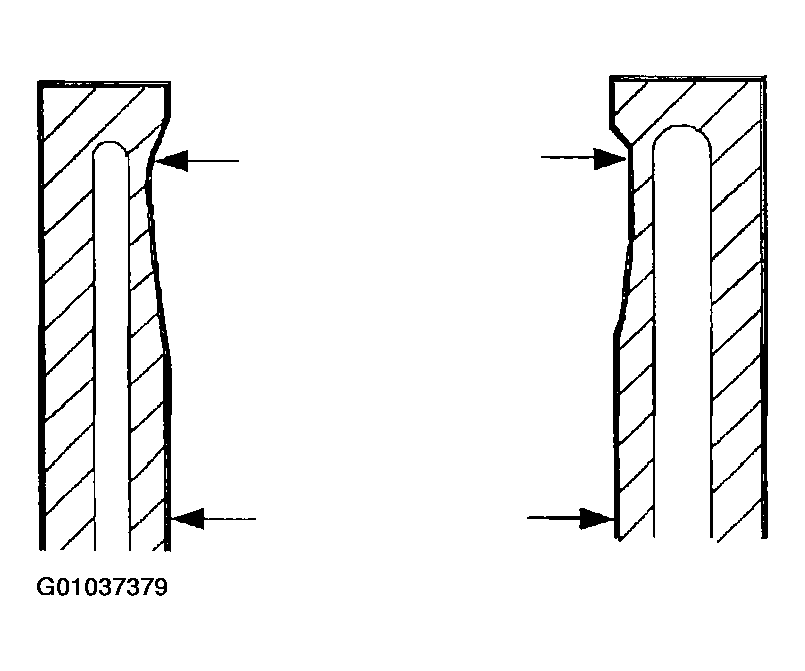

- Measure for taper.
- Measure for runout.
- Measure for ridging.
If wear and/or taper is less than 0.05 mm (0.002 in.), cylinder must be reconditioned. Recondition the cylinders with less than 0.05 mm (0.002 in.) of wear and/or taper with a hone and fit with the appropriate size select fit piston (providing the cylinder was not fitted with the largest size select fit piston). If wear and/or taper is over 0.05 mm (0.002 in.) cylinder must be bored.
