Engine General Diagnostic Flow Chart

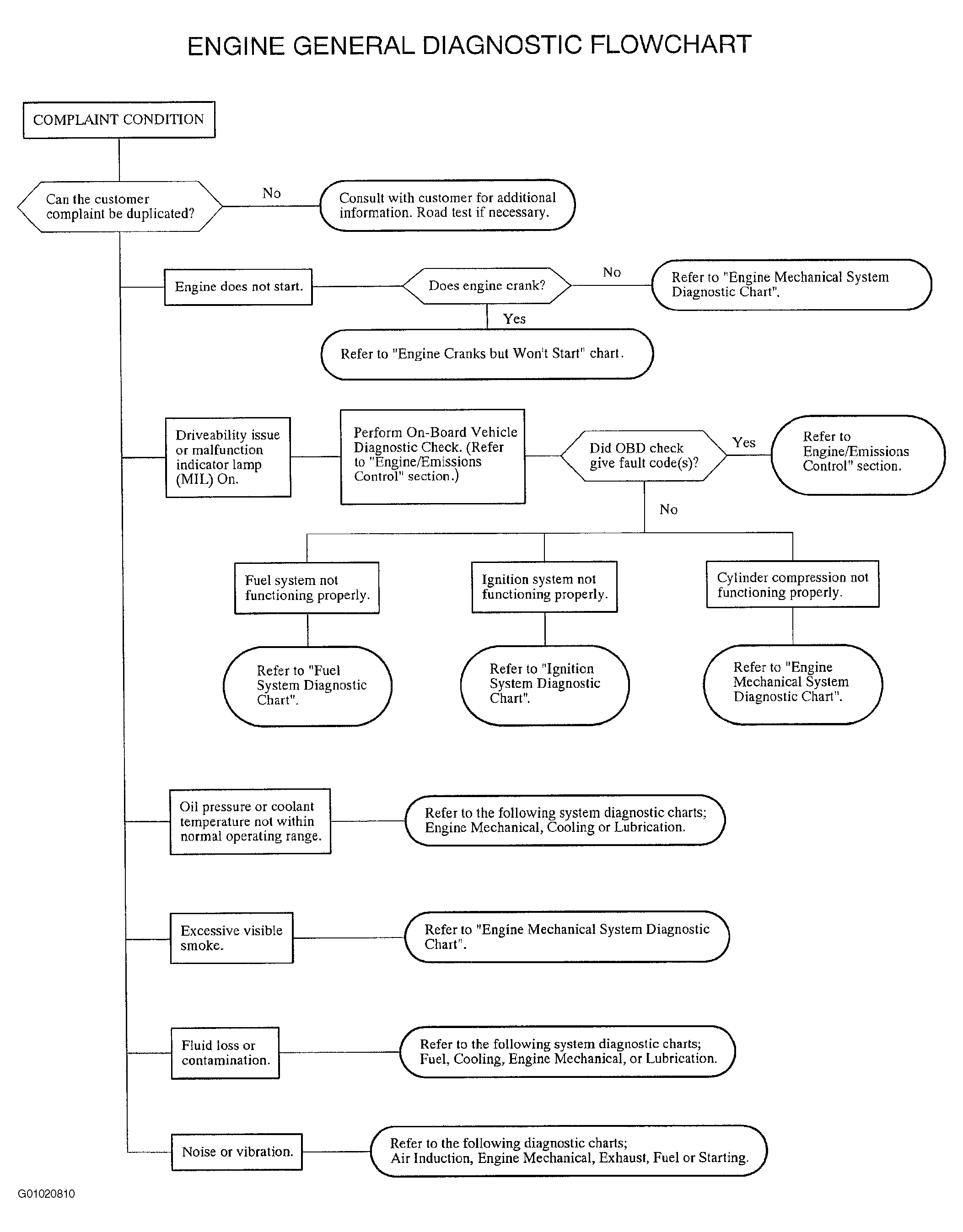

Fig 1: Engine General Diagnostic Flow Chart

G01020810

Courtesy of GENERAL MOTORS CORP.
