Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Diagnostics >> Lubrication System Troubleshooting Chart

Lubrication System Troubleshooting Chart

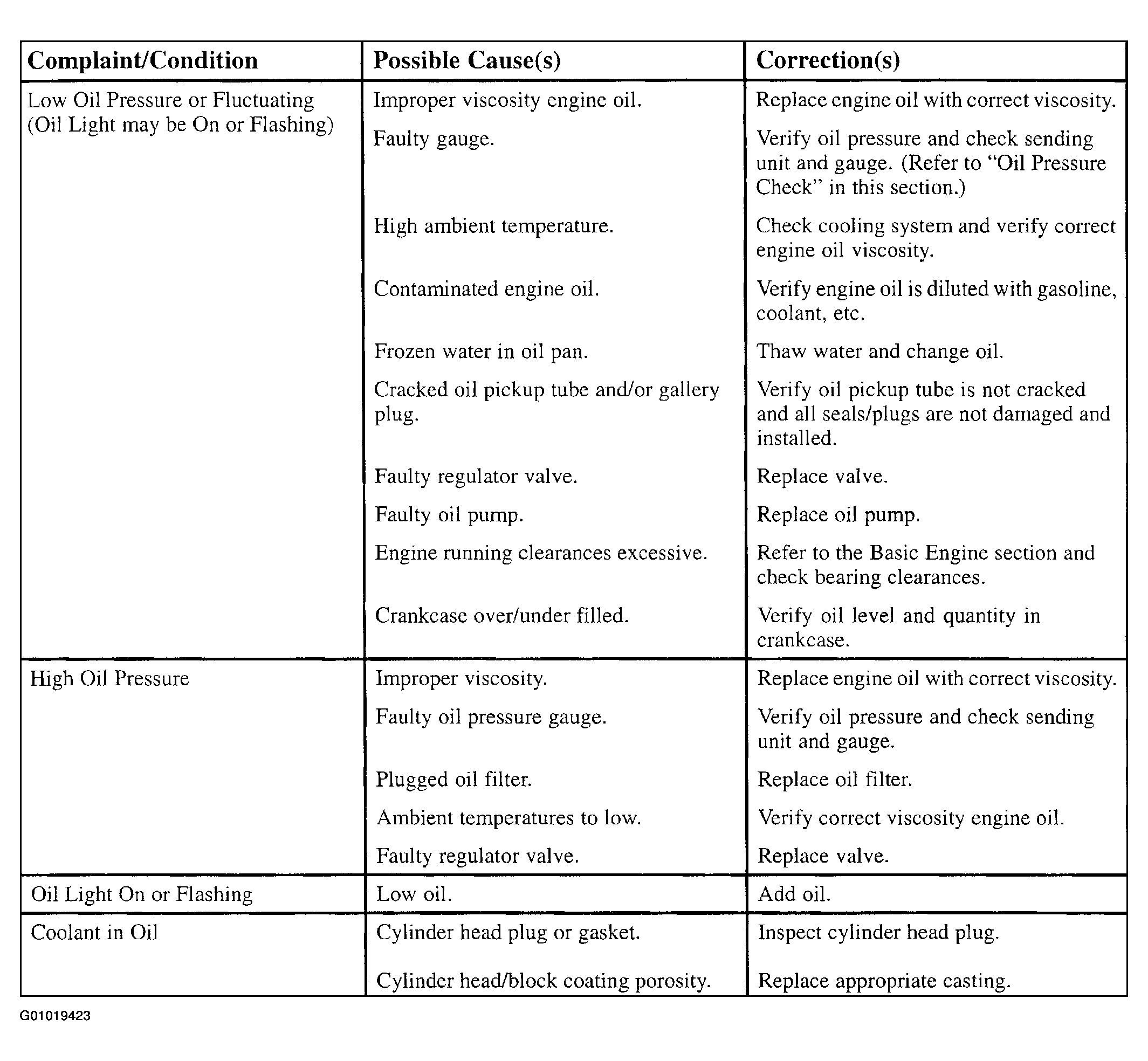

Fig 1: Lubrication System Troubleshooting Chart

G01019423

Courtesy of GENERAL MOTORS CORP.
