Diagnostic Procedures

To diagnose DTC, see Fig 1 .

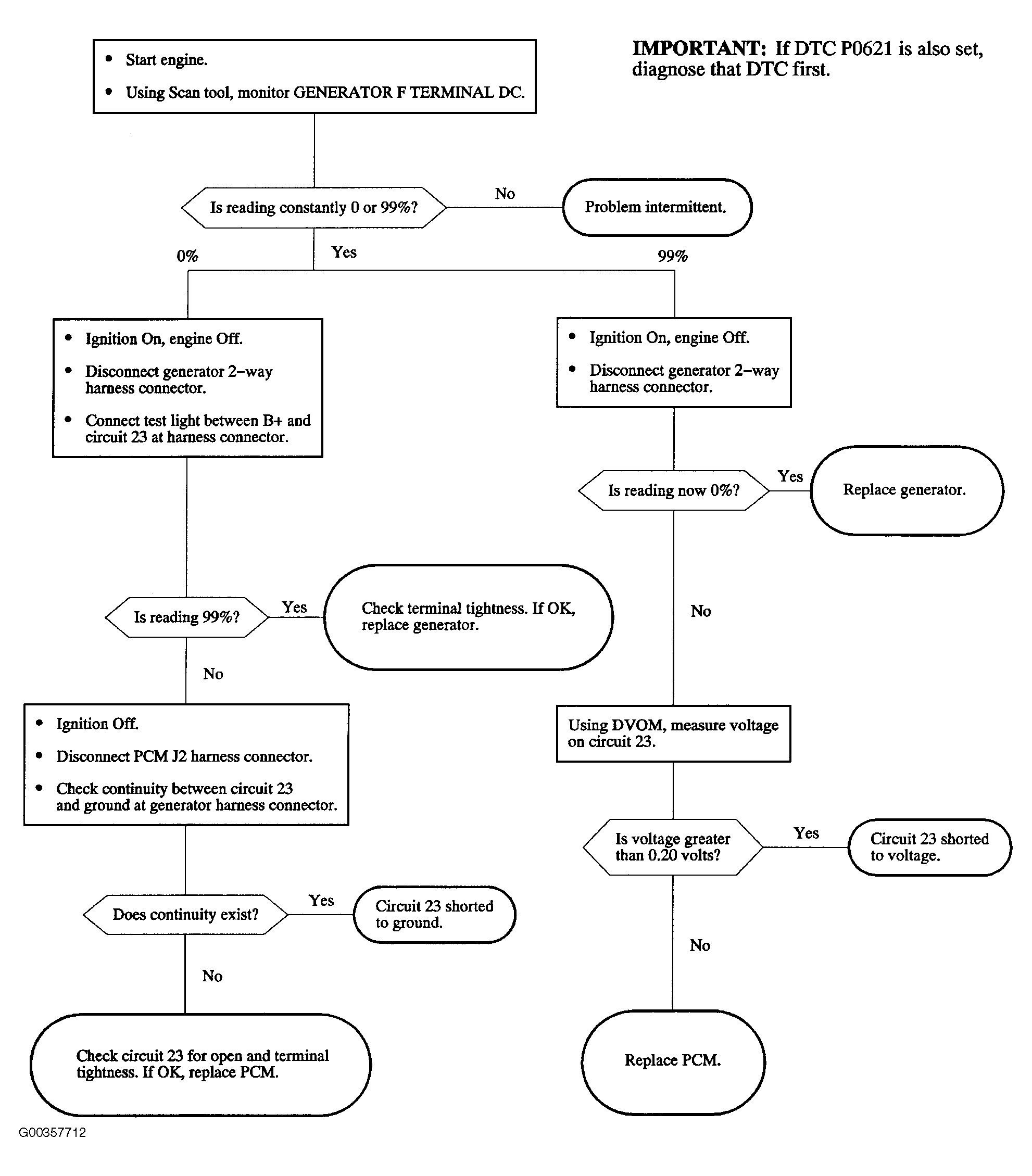

Fig 1: DTC P0622: Generator F-Terminal Circuit

G00357712

Courtesy of GENERAL MOTORS CORP.
