Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostics >> TRAC Switch Led Inoperative >> Trac Switch Led Inoperative

Trac Switch Led Inoperative

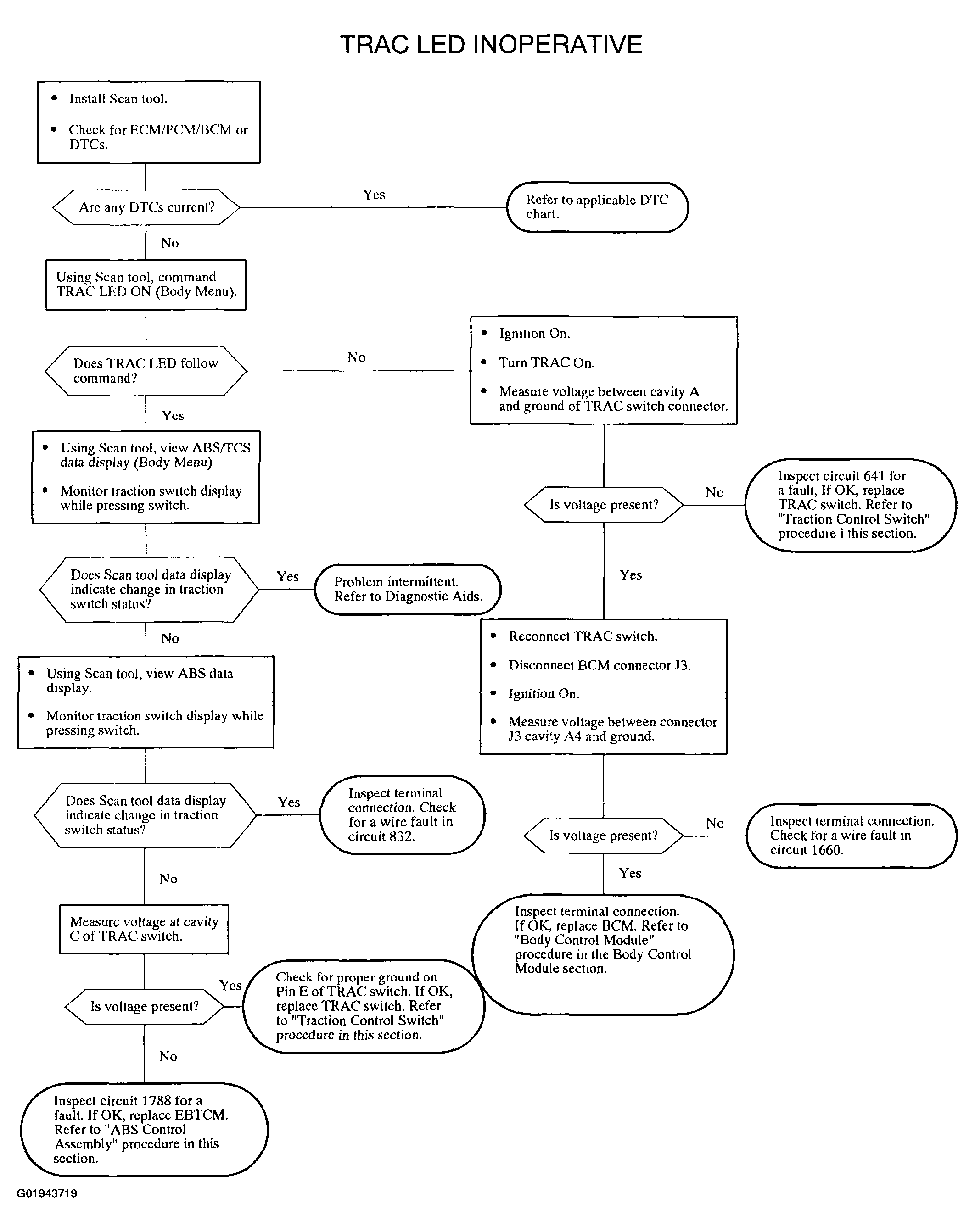

Fig 1: TRAC Switch LED Inoperative Chart

G01943719

Courtesy of GENERAL MOTORS CORP.
