DTC B0827: Traction Control System Off Indicator Circuit Low: B0827

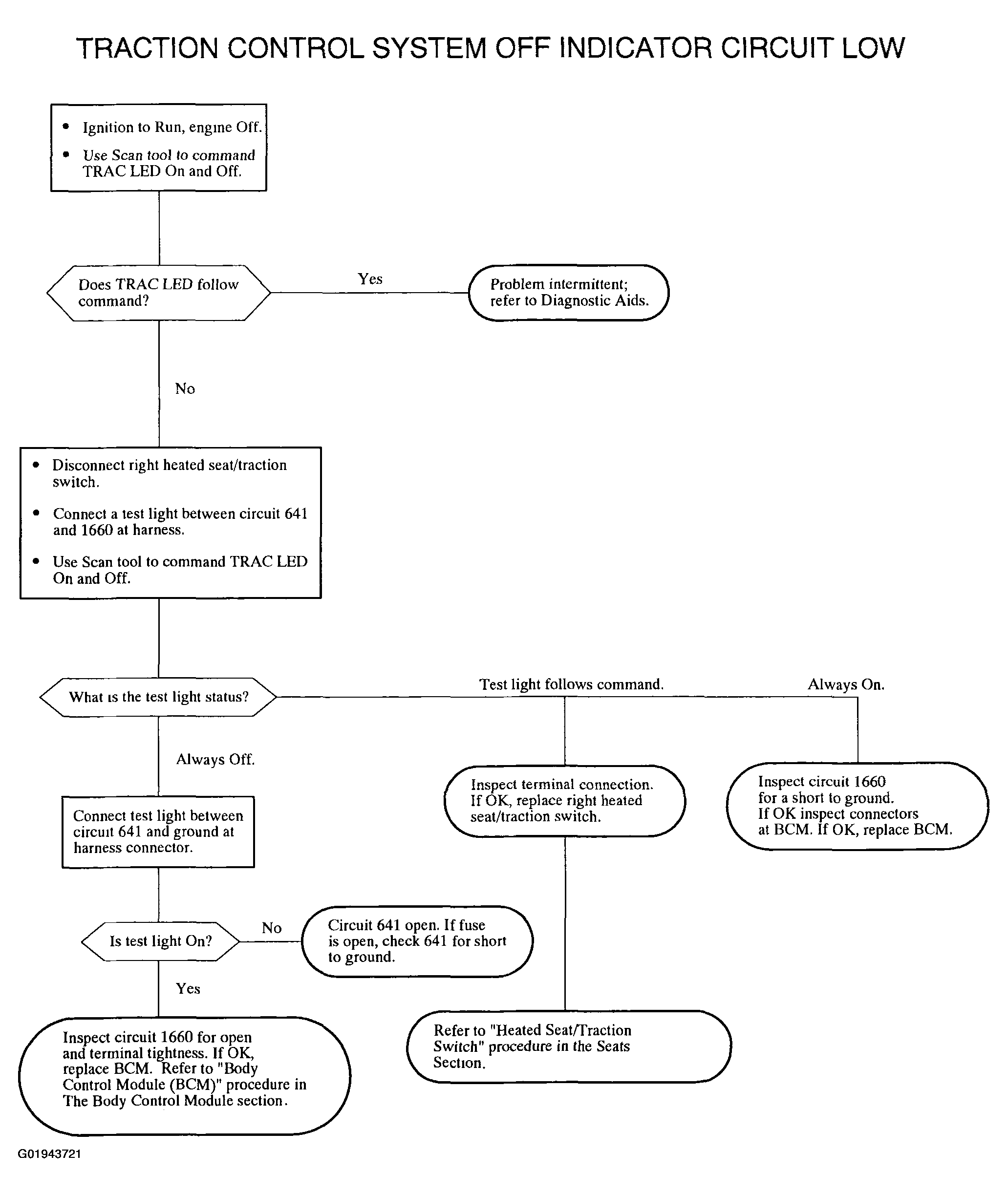

Fig 1: Traction Control System Off Indicator Circuit Low Chart

G01943721

Courtesy of GENERAL MOTORS CORP.
