Anti-Lock Brake System (Abs) Component Location

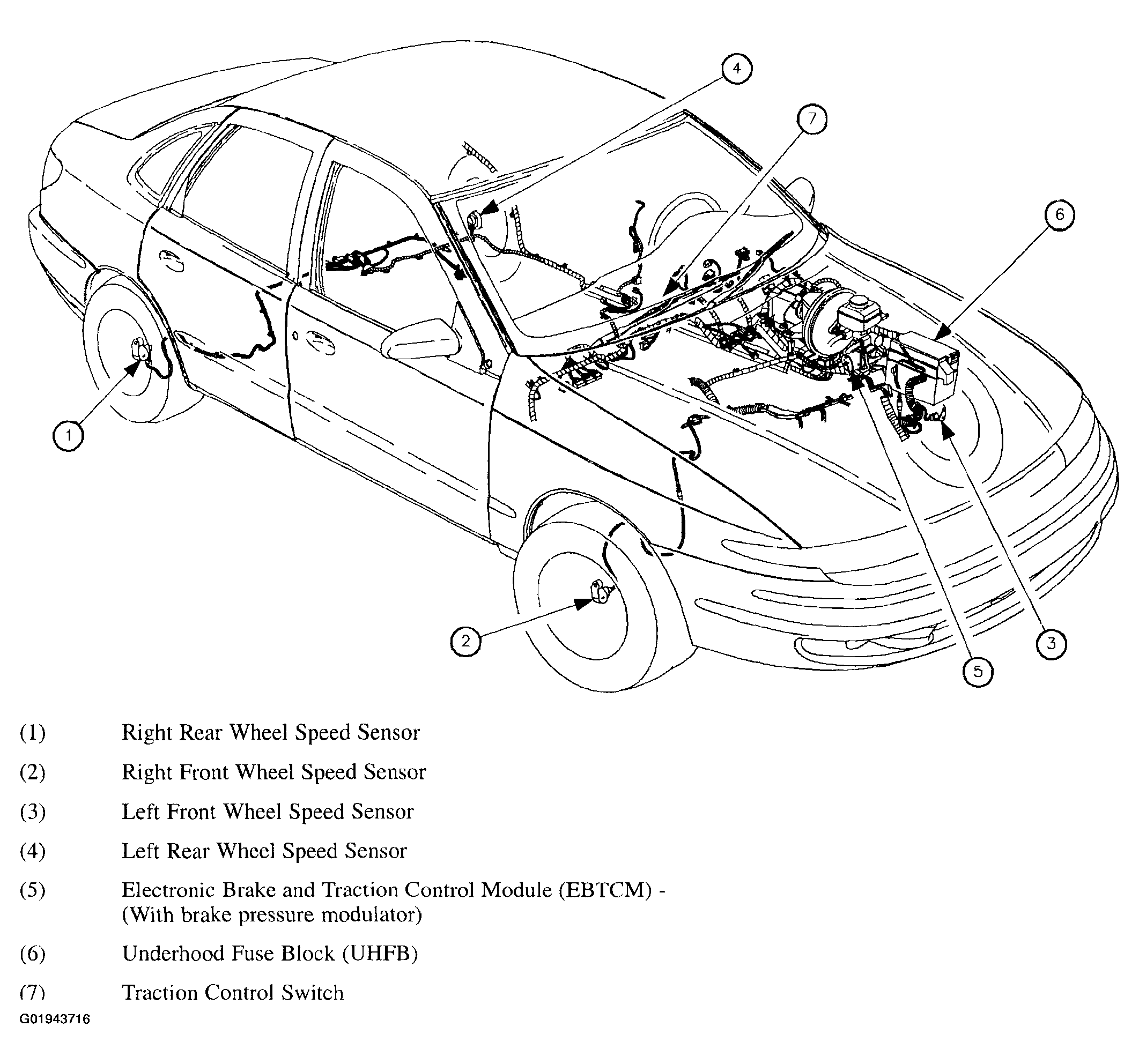

Fig 1: Anti-Lock Brake System (ABS) Component Location

G01943716

Courtesy of GENERAL MOTORS CORP.
