Serial Data Link Component Placement (L81)

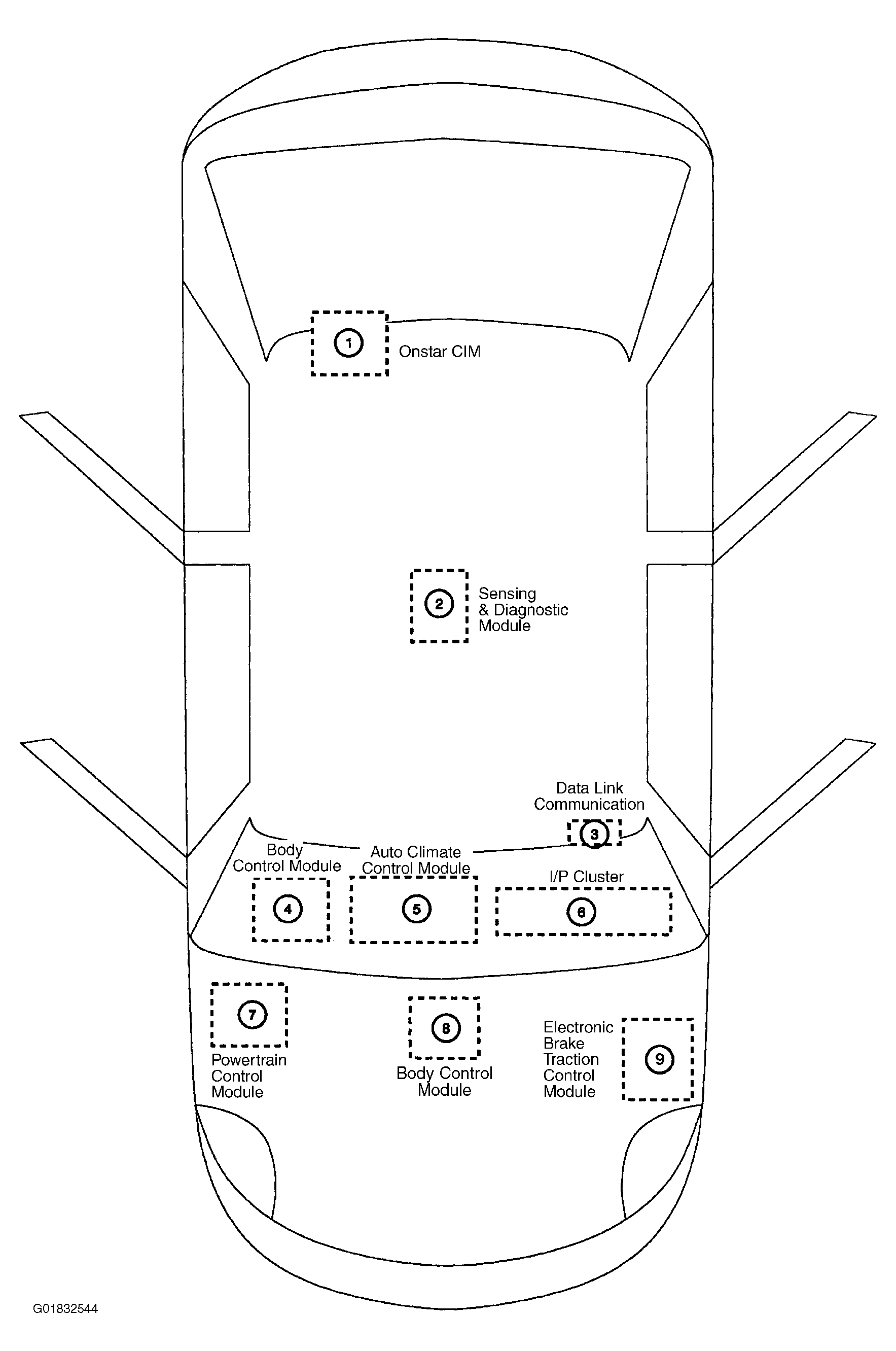

Fig 1: Serial Data Link Component Placement

G01832544

Courtesy of GENERAL MOTORS CORP.
