Differential Assembly - Component Locations

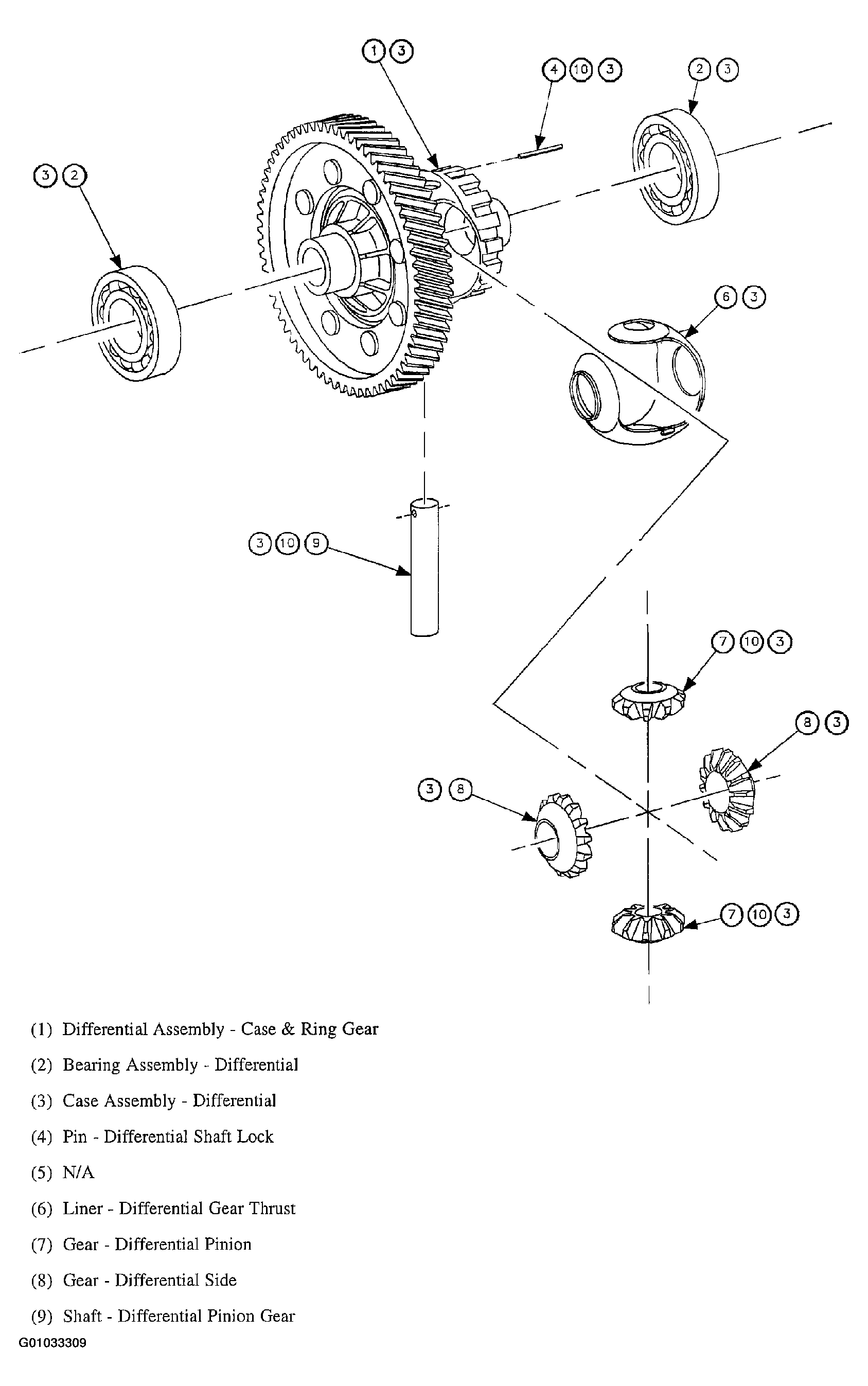

Fig 1: Exploded View Of Differential Shaft

G01033309

Courtesy of GENERAL MOTORS CORP.
