Back-Up Lamp Switch (On-Vehicle): Installation

  1. Apply sealant with Teflon(tm) P/N 21485278 or equivalent on threads before installing.
  2. Install switch

    Torque Back-Up Lamp Switch: 23 N.m (17 ft-lbs)

  3. Connect electrical connector to switch.
  4. Install air cleaner housing and duct assembly. Refer to AIR CLEANER HOUSING AND DUCT ASSEMBLY  .

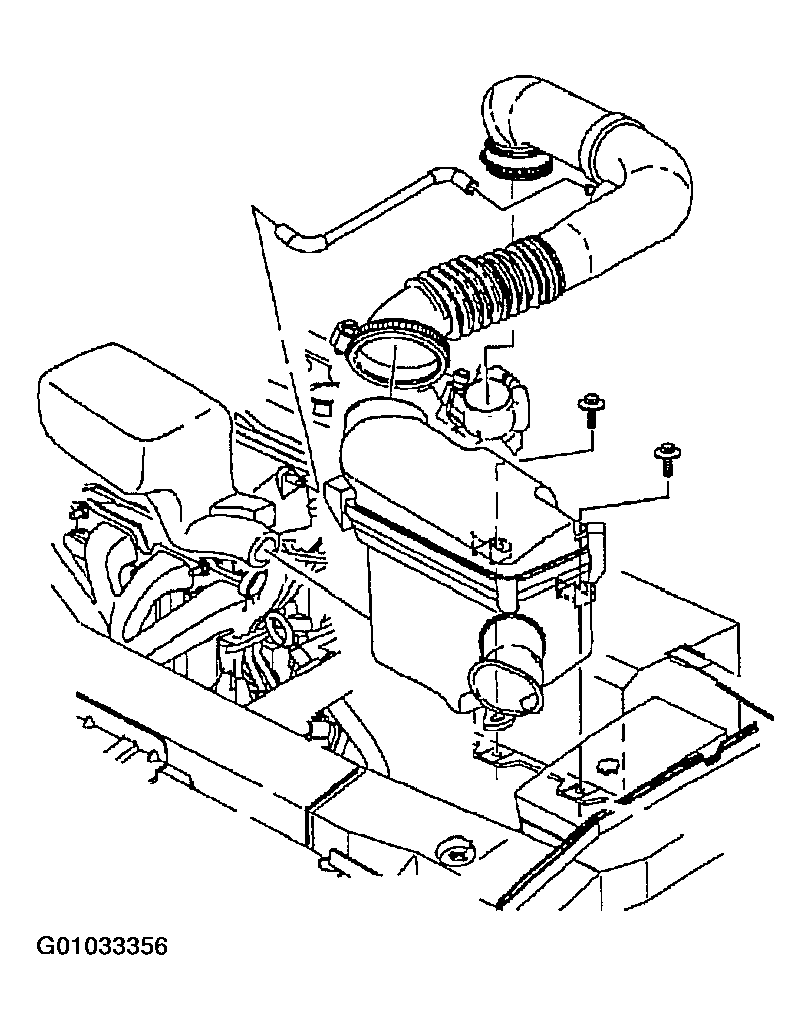

    Fig 1: Installing Air Cleaner Housing & Duct Assembly
    G01033356Courtesy of GENERAL MOTORS CORP.
