Stop/Tail/Back-Up/Turn Marker Lamp Inline (2ND Design)

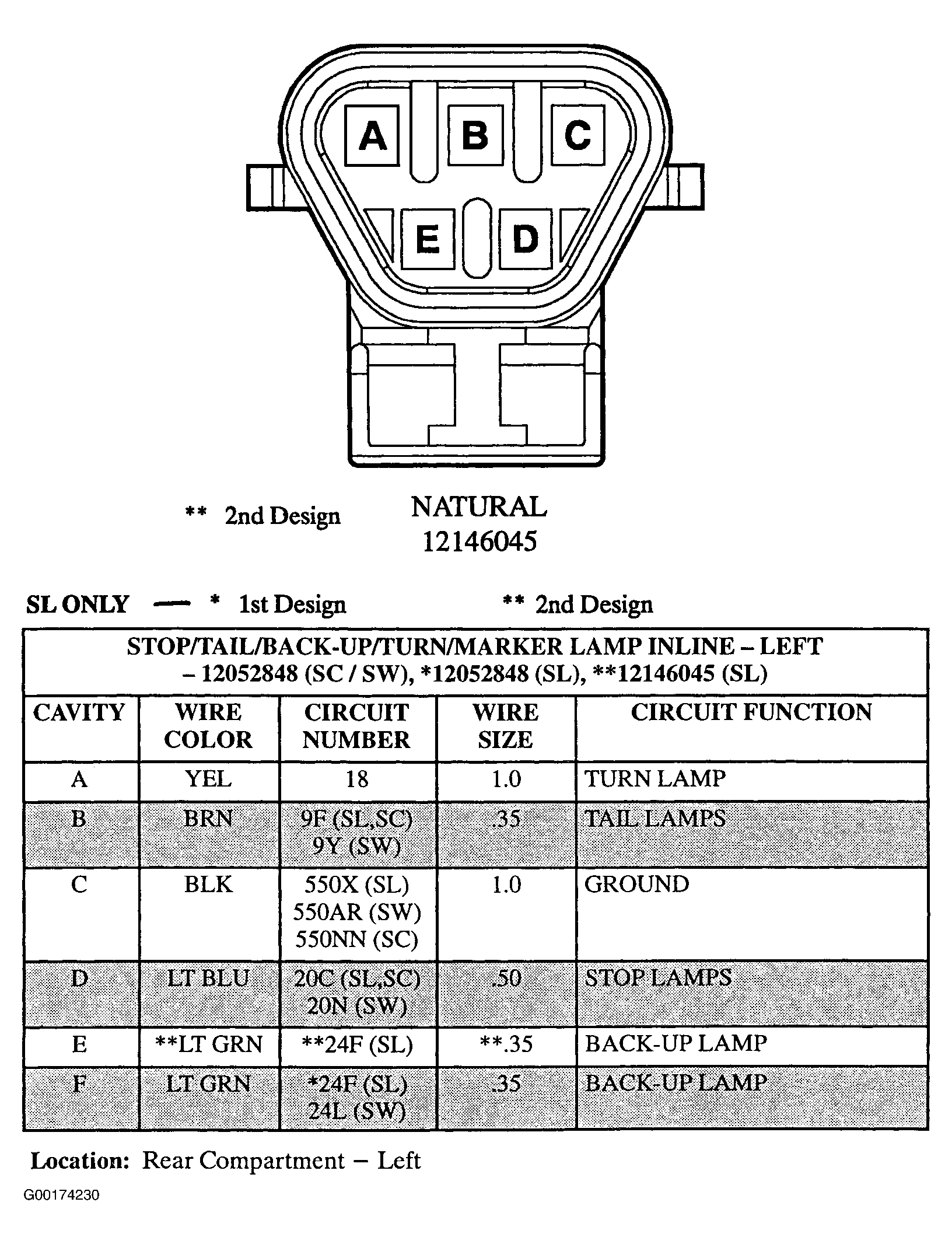

Fig 1: Stop/Tail/Back-Up/Turn Marker Lamp Inline (2nd Design) - 5-Pin Connector (12146045) - Natural

G00174230

Courtesy of GENERAL MOTORS CORP.
