Outside Rearview Mirror Wiring Schematics

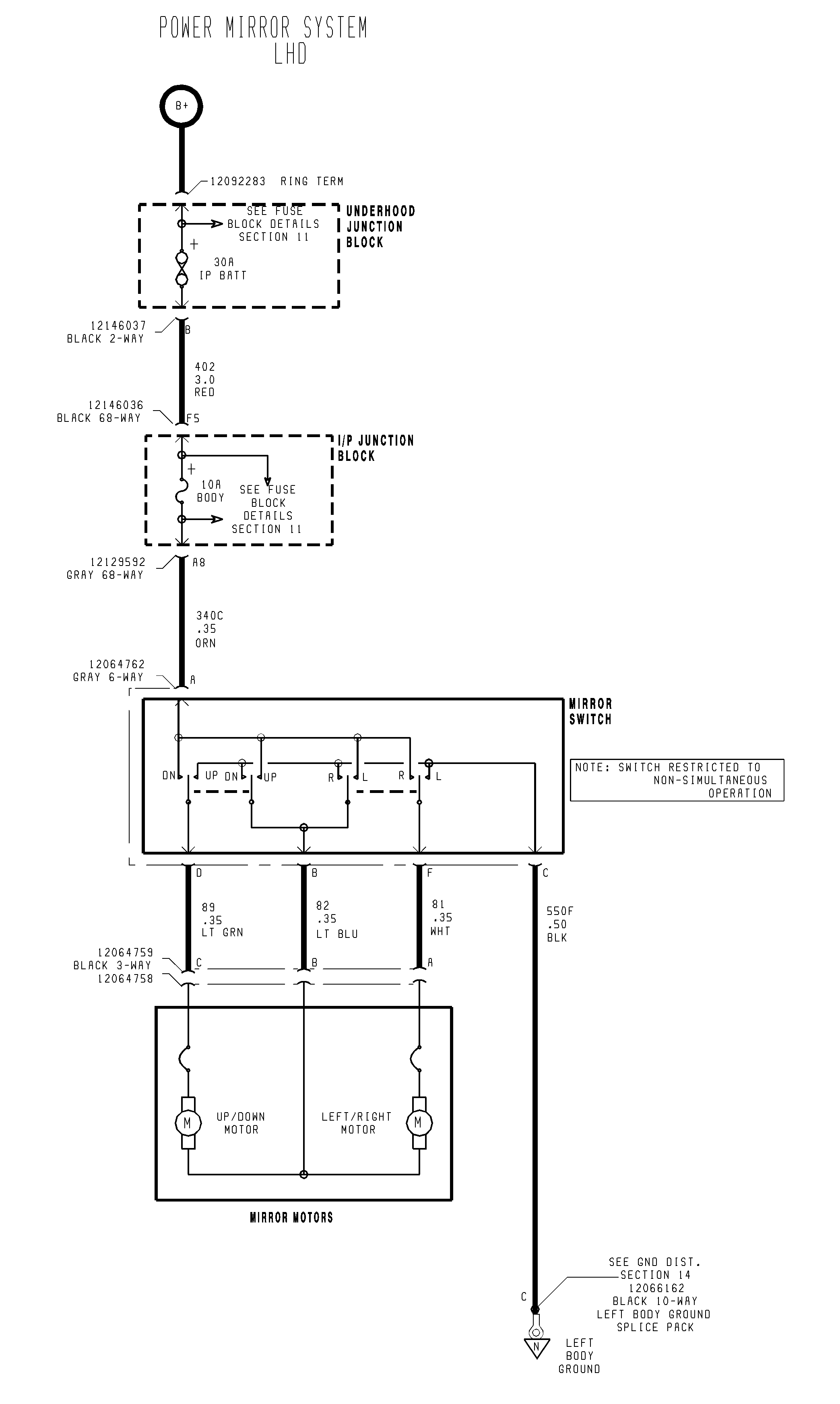

Fig 1: Outside Rearview Mirror Wiring Schematic

GM908855

Courtesy of GENERAL MOTORS COMPANY
