Fuse Panel Identification (1993-94): Notes

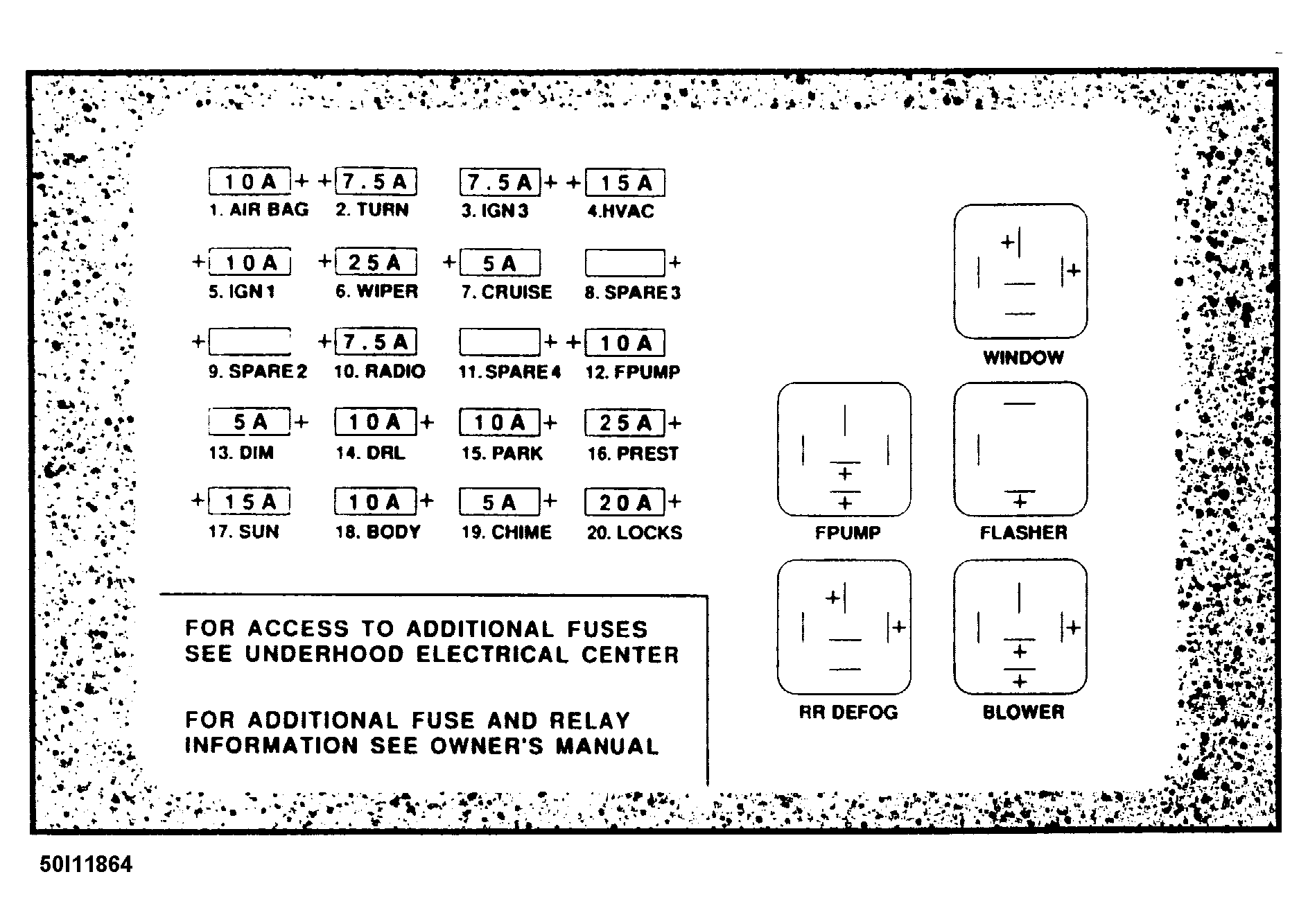

Fig 1: Instrument Panel Fuse Block Identification (1993-94)

G50I11864

Courtesy of GENERAL MOTORS CORP.
