Mike's Workshop Manuals: Service manuals for every vehicle
Home >> Saturn >> 1994 >> SC2 Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> ECM/Pcm Code Charts >> Code 49: Idle Rpm High (Vacuum Leak) >> Diagnostic Aids

Diagnostic Aids

Inspect vacuum hoses for cracks and splits. If all hoses and connections are okay, check for intake manifold and MAP sensor leaks. Check minimum idle speed and PCV valve. A short to ground in a IAC circuit may cause a Code 49 to set.

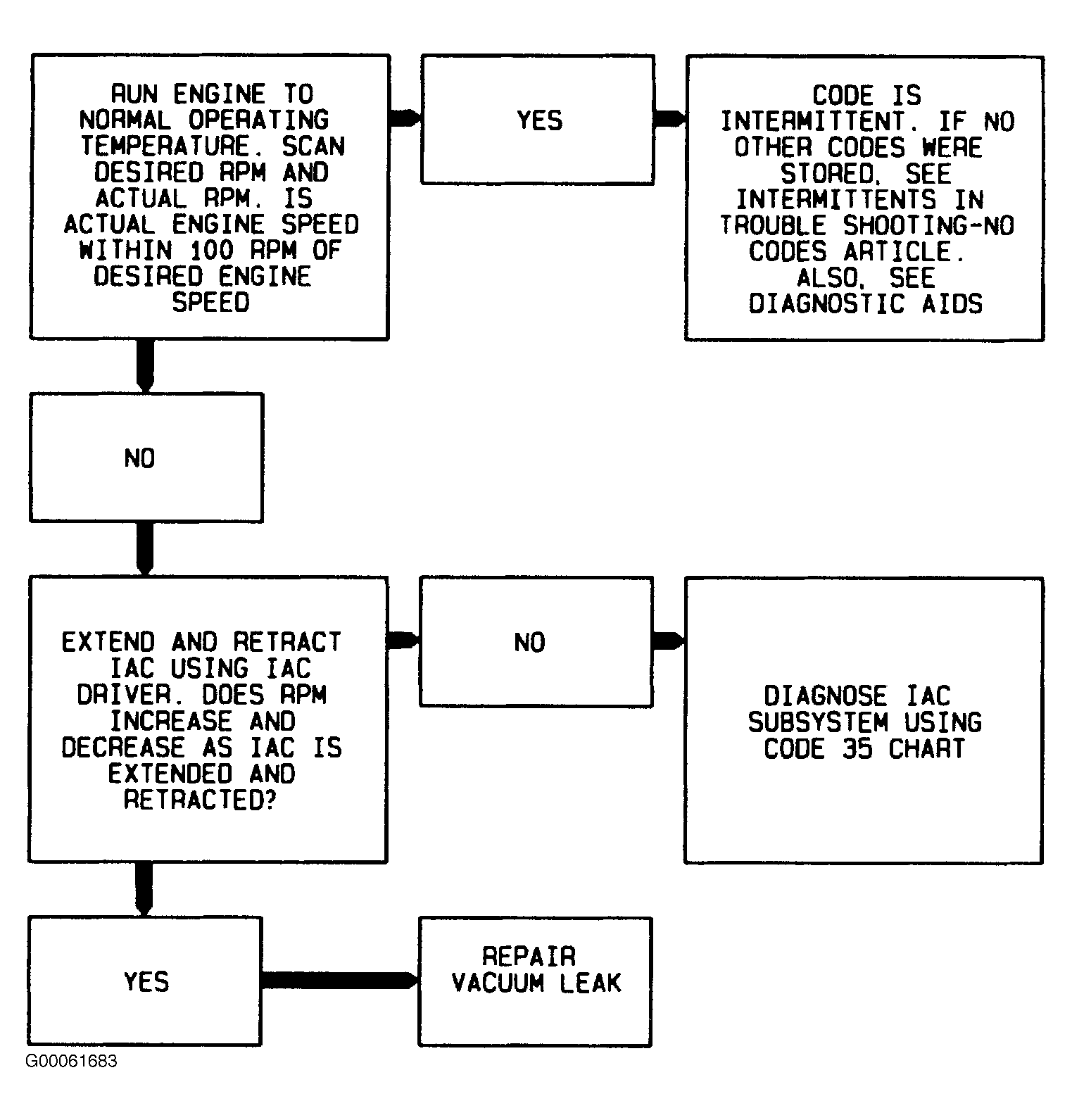

Fig 1: Code 49 Flow Chart (Saturn) Idle RPM High (Vacuum Leak)
G00061683
