Engine Identification (LDK, LHU): Notes

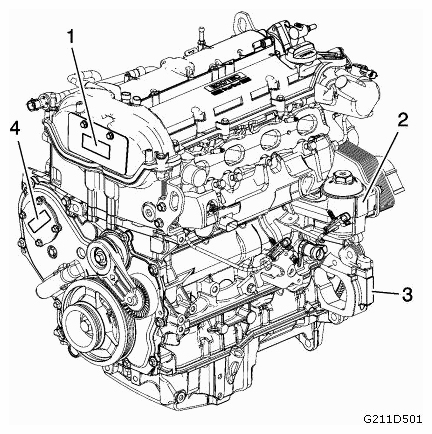

Fig 1: Identifying Engine Identification Tag

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Identification can be made through the use of the broadcast code label (1), identification label (4), and the use of the partial vehicle identification number (VIN) etched in one of two places - the primary location is on the starter motor flange (3). The secondary location is the oil filter bowl (2).
