Oil Level Indicator Tube Replacement

WARNING: This page is about a different variant/trim than selected.

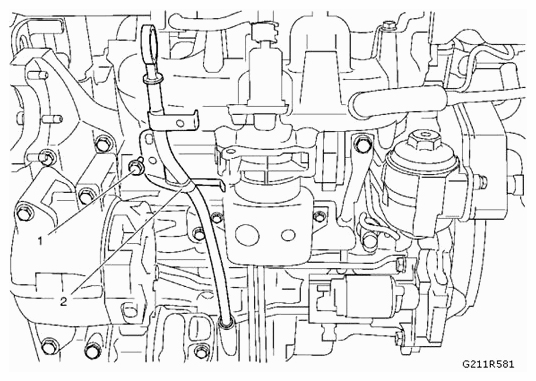

Fig 1: Identifying Oil Level Indicator Tube
G09406934Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Oil Level Indicator Tube Fastener
Refer to FASTENER CAUTION .
Procedure
Release the engine electronic cable.
Tighten
10 Nm (89 lb in)
2 Oil Level Indicator Tube
