Installation Procedure

WARNING: This page is about a different variant/trim than selected.

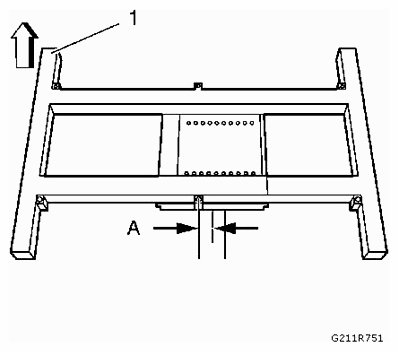

  1. Install the CH-904  base frame (1) to the hydraulic lift. The distance (A) has to be 40 mm (1.6 in)  .
    Fig 1: Installing CH-904 Base Frame To Hydraulic Lift
    G09406900Courtesy of SAAB-SCANIA OF AMERICA, INC.

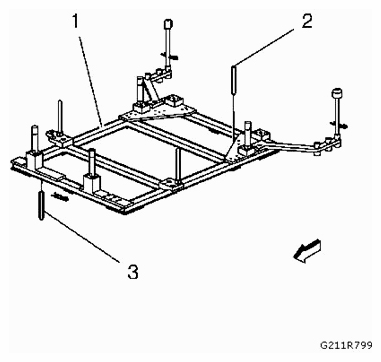

  2. Install the CH-49289-2  safety (2) and CH-49289-3  safety (3) into the CH-49289  centering adapter (1).
    Fig 2: Installing CH-49289-2 And CH-49289-3 Safety Into CH-49289 Centering Adapter
    G09406901Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the CH-49289  centering adapter to the CH-904  base frame.

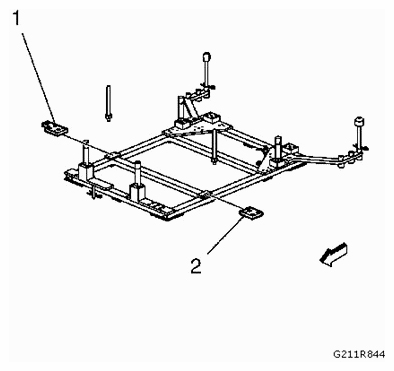

  4. Install the CH-49289-4  support right (1) to position "01".
    Fig 3: Installing CH-49289-4 Support Right To Position (1)
    G09406902Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Install the CH-49289-5  support left (2) to position "02".

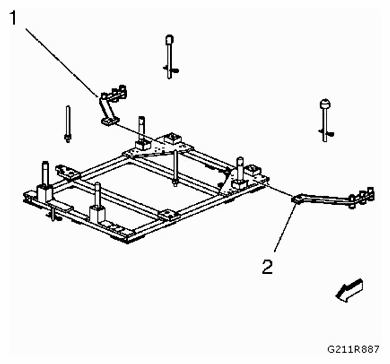

  6. Install the CH-49289-7  arm right (1) to position "04".
    Fig 4: Installing CH-49289-7 Arm Right To Position (4)
    G09406903Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Install the CH-49289-9  arm left (2) to position "06".

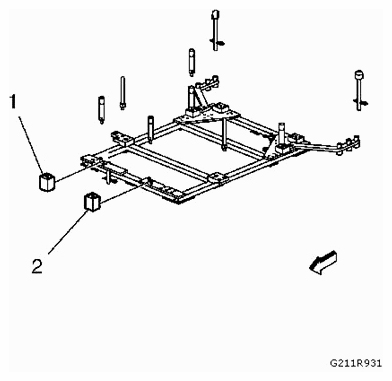

  8. Install the CH-49289-11  adapter (1) to position "08".
    Fig 5: Installing CH-49289-11 Adapter To Position (8)
    G09406904Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Install the CH-49289-11  adapter (2) to position "09".

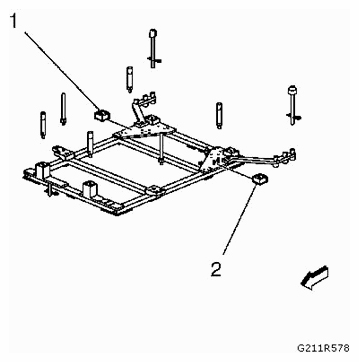

  10. Install the CH-49289-12  adapter (1) to position "15".
    Fig 6: Installing CH-49289-12 Adapter To Position (15)
    G09406905Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Install the CH-49289-12  adapter (2) to position "18".

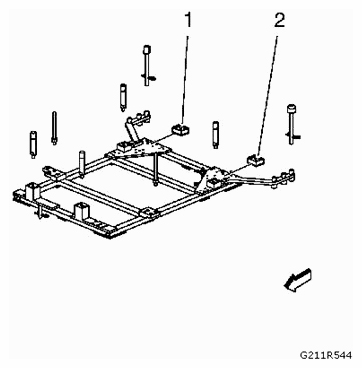

  12. Install the CH-49289-13  adapter (1) to position "19".
    Fig 7: Installing CH-49289-13 Adapter To Position (19)
    G09406906Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Install the CH-49289-13  adapter (2) to position "22".

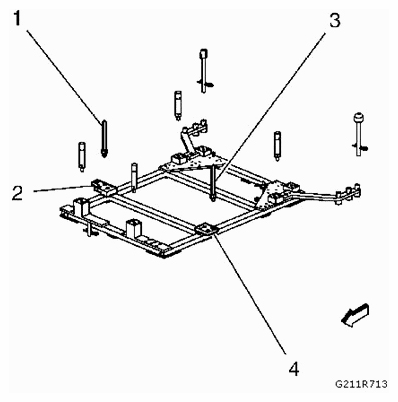

  14. Install the CH-49289-6 (1)  centering pin into CH-49289-4  support right (2) to position "B".
    Fig 8: Installing CH-49289-4 Support Right To Position (B)
    G09406907Courtesy of SAAB-SCANIA OF AMERICA, INC.
  15. Install the CH-49289-6  centering pin (3) into CH-49289-5 (4) to position "E".
  16. NOTE: For the removal of front suspension frame and/or engine and transmission, lower and secure CH-49289-8  rod right and CH-49289-10  rod left.

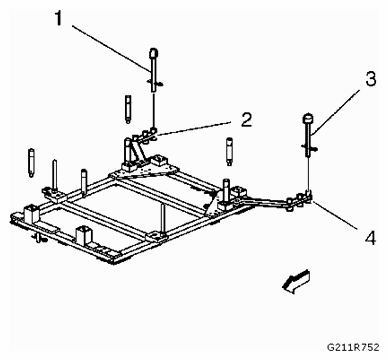

    Install the CH-49289-8  rod right (1) into CH-49289-7  arm right (2) to position "H".

    Fig 9: Installing CH-49289-7 Arm Right To Position (H)
    G09406908Courtesy of SAAB-SCANIA OF AMERICA, INC.
  17. Install the CH-49289-10  rod left (3) into CH-49289-9  arm left (4) to position "M".

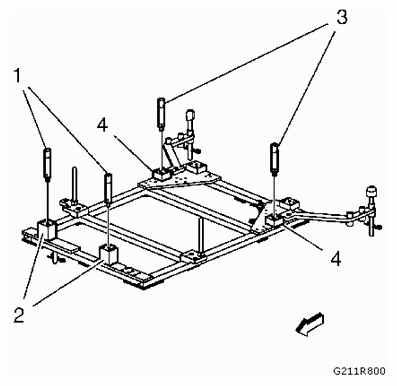

  18. Install both CH-49289-14  support (1) into both CH-49289-11  adapter (2).
    Fig 10: Installing CH-49289-14 Support Into CH-49289-11 Adapter
    G09406909Courtesy of SAAB-SCANIA OF AMERICA, INC.
  19. Install both CH-49289-14  support (3) into both CH-49289-12  adapter (4).
  20. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

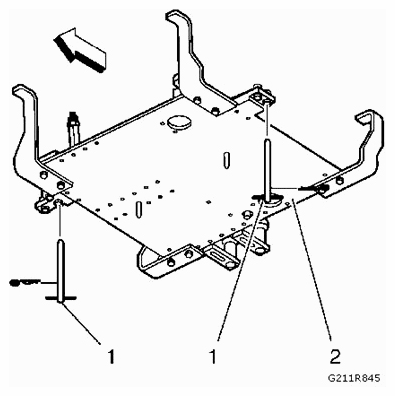

  21. Installation in conjunction with CH-49290  mounting engine: Remove both CH-49290-6  pin (1) from the CH-49290  mounting engine/gearbox (2).
    Fig 11: Removing CH-49290-6 Pin From CH-49290 Mounting Engine/Gearbox
    G09406910Courtesy of SAAB-SCANIA OF AMERICA, INC.
  22. NOTE: Do NOT raise the vehicle with the hydraulic lift. Do NOT lower the vehicle.

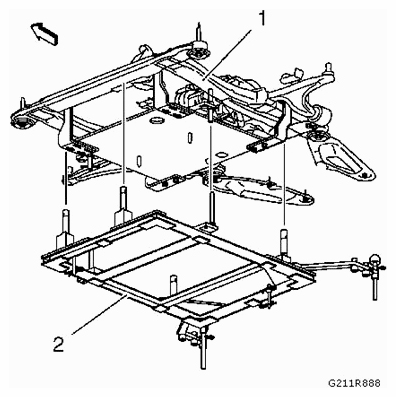

    Raise the hydraulic lift with CH-49289  centering adapter (2) to support the front suspension frame (1).

    Fig 12: Lifting Hydraulic Lift CH-49289 Centering Adapter
    G09406911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  23. Install the CH-49289  centering adapter parallel to the front suspension frame.
