Engine Sight Shield Replacement

WARNING: This page is about a different variant/trim than selected.

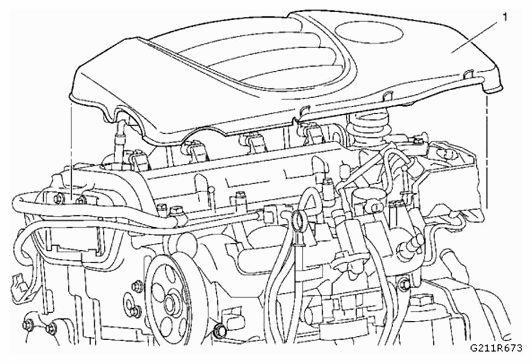

Fig 1: Identifying Engine Sight Shield
G09406951Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Engine Sight Shield
Procedure
Lift the engine sight shield.
