Engine Oil Pressure Switch Replacement

WARNING: This page is about a different variant/trim than selected.

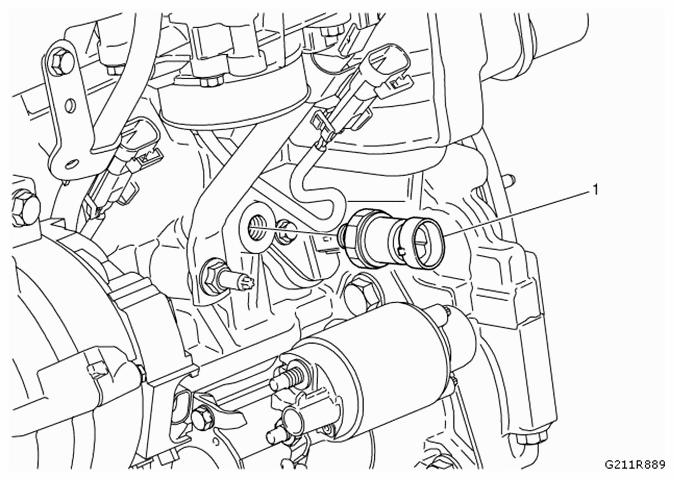

Fig 1: Identifying Engine Oil Pressure Switch
G09406871Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  2. Remove the starter. Refer to STARTER REPLACEMENT (LHU/A20NFT) .
1 Oil Pressure Switch
Procedure
  1. Disconnect the electrical connector.
  2. Use a new gasket.
