Drive Belt Replacement

WARNING: This page is about a different variant/trim than selected.

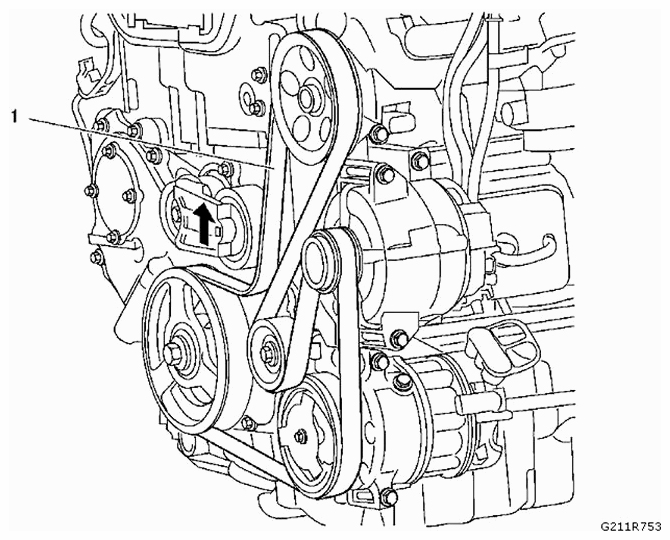

Fig 1: Removing Drive Belt
G09406869Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the front compartment splash shield. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT .
1 Drive Belt
Procedure
Lift up the drive belt tensioner with EN-6151-A  chuck key and remove the generator and air conditioning compressor belt.
Special Tools
EN-6151-A  Chuck Key
