Air Cleaner Assembly Replacement

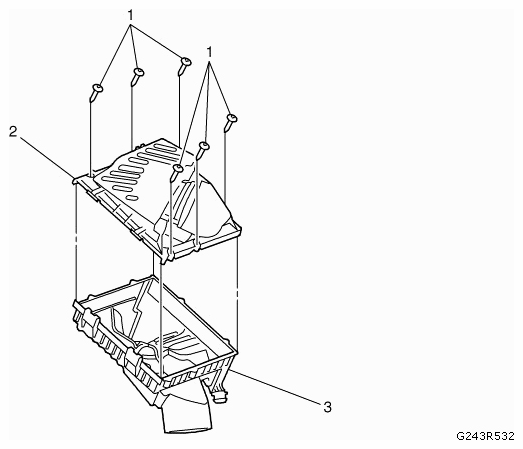

Fig 1: Identifying Air Cleaner Assembly
G09407940Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove the air cleaner element. Refer to AIR CLEANER ELEMENT REPLACEMENT .
  2. Remove the mass airflow sensor. Refer to MASS AIRFLOW SENSOR REPLACEMENT .
1 Air Cleaner Housing Fastener (Qty: 6)
2 Air Cleaner Upper Housing
3 Air Cleaner Lower Housing
