Secondary Timing Chain Guide Installation - Left Side

1. Ensure that the secondary timing chain guide bank 2 (2) is being installed.

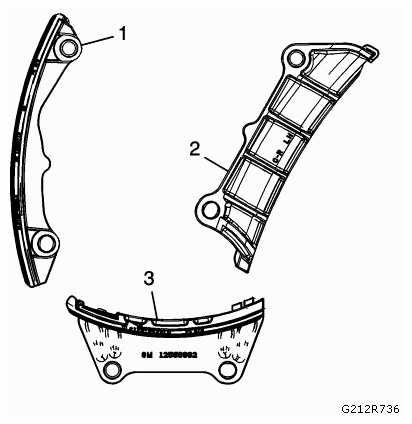

   Fig 1: Identifying Secondary Timing Chain Guide Bank 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Install the secondary timing chain guide 2 (1).

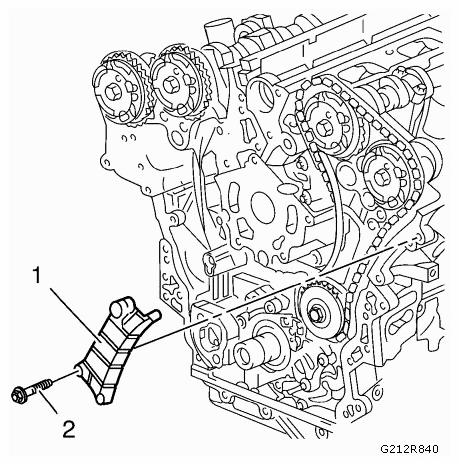

   Fig 2: Identifying Secondary Timing Chain Guide And Mounting Bolt

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Refer to FASTENER CAUTION .

Install the 2 secondary timing chain guide bolts (2) and tighten to 23 Nm (17 lb ft).
