Throttle Inlet Absolute Pressure Sensor Replacement

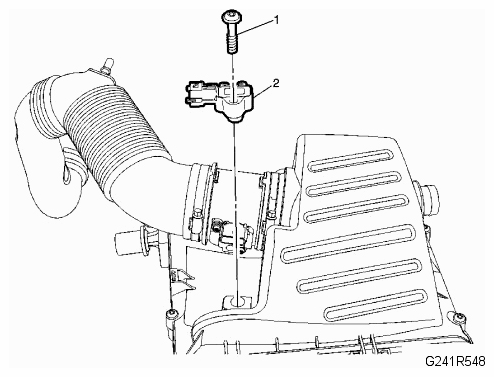

Fig 1: Removing Throttle Inlet Absolute Pressure Sensor And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Throttle Inlet Absolute Pressure Sensor Fastener Refer to FASTENER CAUTION . Tighten  4 Nm (35 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
