Throttle Body Assembly Replacement

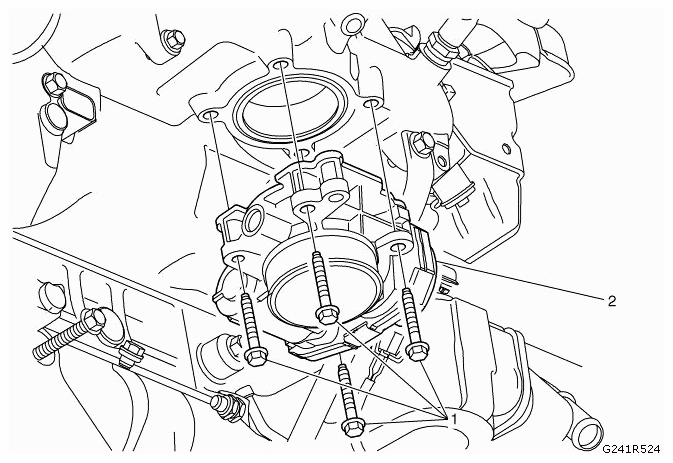

Fig 1: Disconnecting Throttle Body And Fastener
G09407556Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  2. Release the charge air cooler outlet pipe. Refer to CHARGE AIR COOLER OUTLET AIR HOSE REPLACEMENT .
1 Throttle Body Assembly Fastener (Qty: 4)
Refer to FASTENER CAUTION .
Tighten
10 Nm (89 lb in)
2 Throttle Body
Procedure
Disconnect the electrical connector.
