Intake Air Pressure and Temperature Sensor Replacement

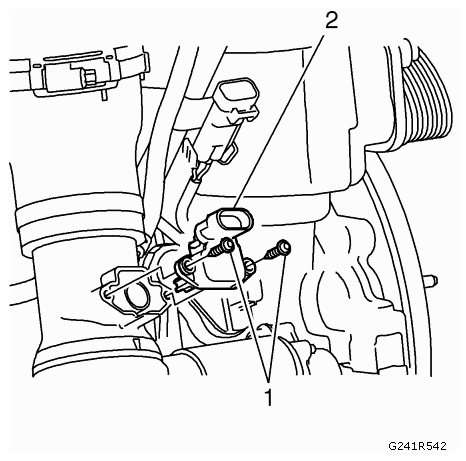

Fig 1: Removing Intake Air Pressure And Temperature Sensor
G09407694Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Intake Air Pressure and Temperature Sensor Fastener (Qty: 2) Refer to FASTENER CAUTION .
Procedure
Disconnect the electrical connector.
Tighten
7 Nm (62 lb in)
2 Intake Air Pressure and Temperature Sensor
