Crankshaft Position Sensor Replacement

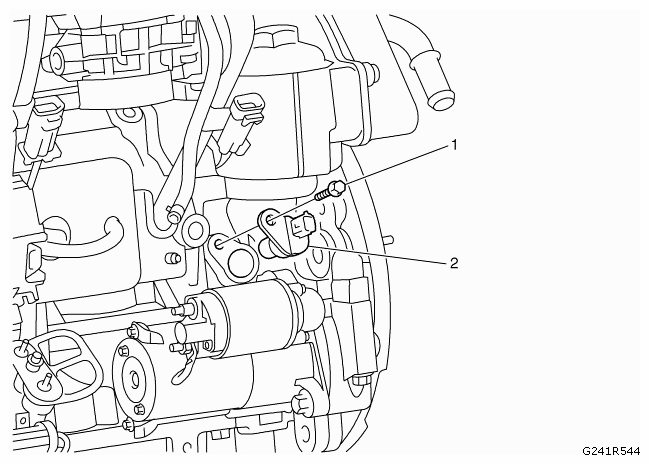

Fig 1: Removing Crankshaft Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the starter. Refer to STARTER REPLACEMENT (LHU/A20NFT) .
1	Crankshaft Position Sensor Fastener Refer to FASTENER CAUTION . Procedure  Disconnect the electrical connector. Tighten  10 Nm (89 lb in)
2	Crankshaft Position Sensor
