Air Cleaner Assembly Replacement

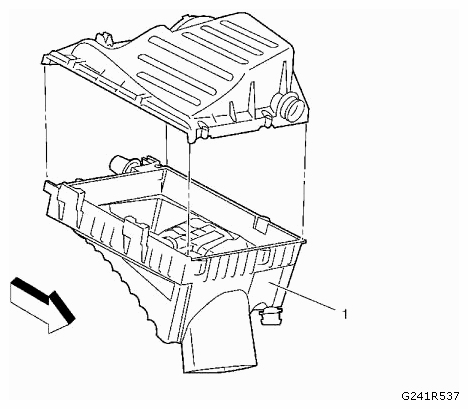

Fig 1: Removing Air Cleaner Assembly
G09407703Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Release the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT .
  2. Remove the air cleaner element. Refer to AIR CLEANER ELEMENT REPLACEMENT .
1 Air Cleaner Assembly
Procedure
Lift up the air cleaner assembly.
