Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
  2. Remove the left bank secondary camshaft drive chain tensioner. Refer to SECONDARY TIMING CHAIN TENSIONER REMOVAL - LEFT SIDE .
  3. Remove the left bank secondary camshaft drive chain guide (1). Refer to SECONDARY TIMING CHAIN GUIDE REMOVAL - LEFT SIDE .

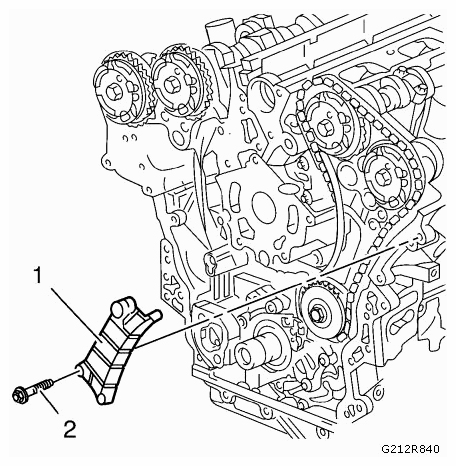

Fig 1: Identifying Left Bank Secondary Camshaft Drive Chain Guide And Mounting Bolt
G09438404Courtesy of SAAB-SCANIA OF AMERICA, INC.
