Steering Gear Heat Shield Replacement

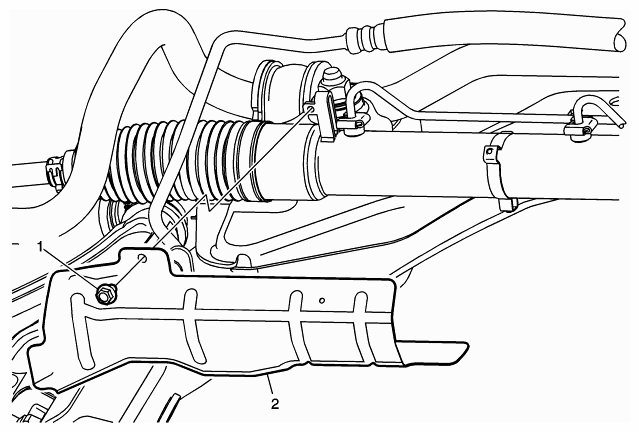

Fig 1: Identifying Power Steering Gear Heat Shield And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Fastener Refer to FASTENER CAUTION . Tighten  9 N m (80 lb in)
2	Power Steering Gear Heat Shield
