Module Power, Ground, Serial Data, and Indicator

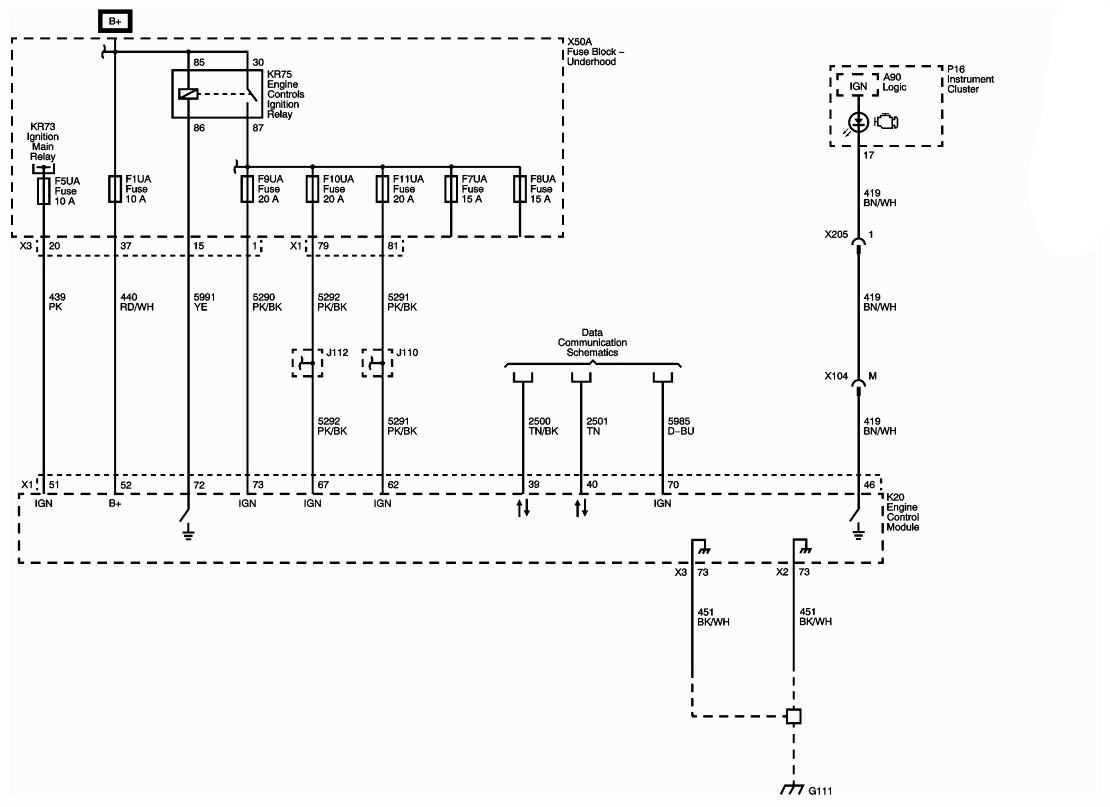

Fig 1: Engine Controls - Wiring Diagram (Module Power, Ground, Serial Data And Indicator) - 3.0L LF1

G09405155

Courtesy of SAAB-SCANIA OF AMERICA, INC.
