Module Power, Ground Serial Data, and Indicator

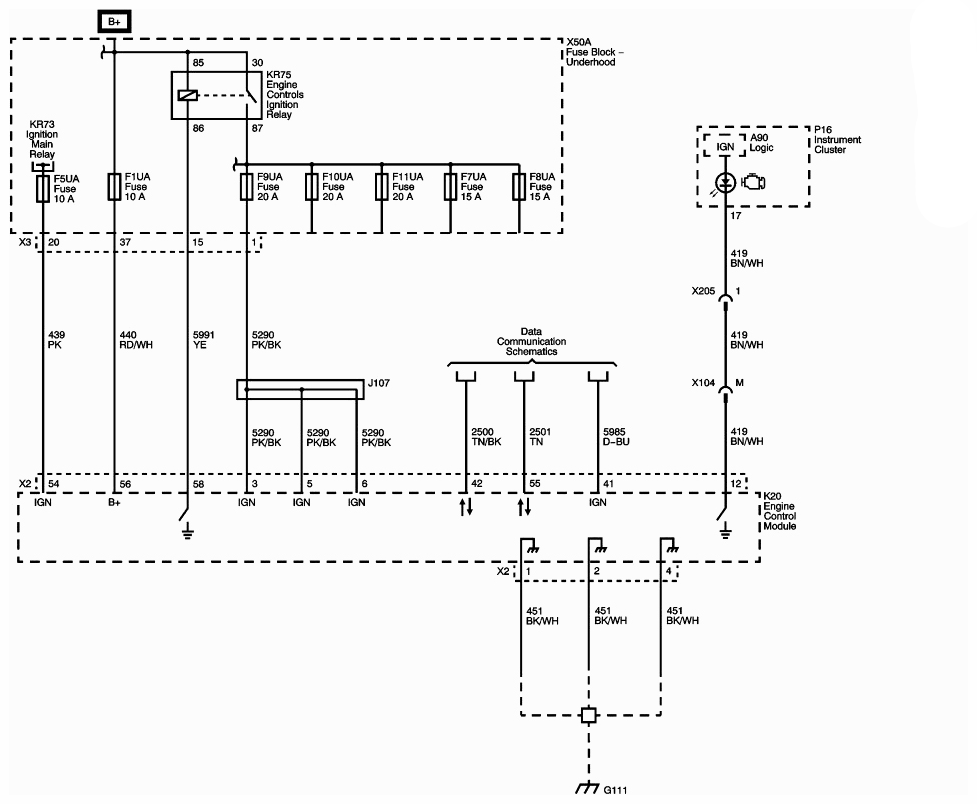

Fig 1: Engine Controls - Wiring Diagram (Module Power, Ground, Serial Data And Indicator) - 2.8L LAU

G09405167

Courtesy of SAAB-SCANIA OF AMERICA, INC.
