Turbocharger Pressure Sensor Replacement

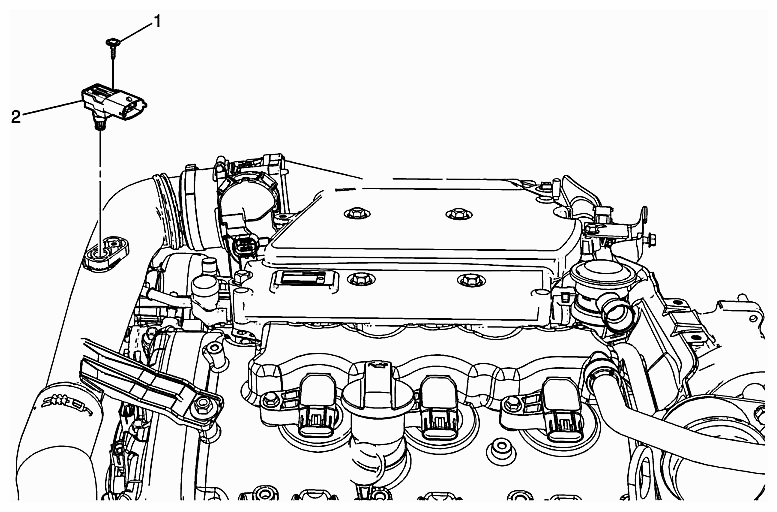

Fig 1: Identifying Turbo Pressure Sensor And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures
Remove the intake manifold cover. Refer to INTAKE MANIFOLD COVER REPLACEMENT .
1	Turbo Pressure Sensor Fastener Refer to CAUTION: RETAINER Tighten  4 Nm (35 lb in)
2	Turbo Pressure Sensor Procedure  Disconnect the electrical connector.
