Throttle Inlet Absolute Pressure Sensor Replacement (LF1)

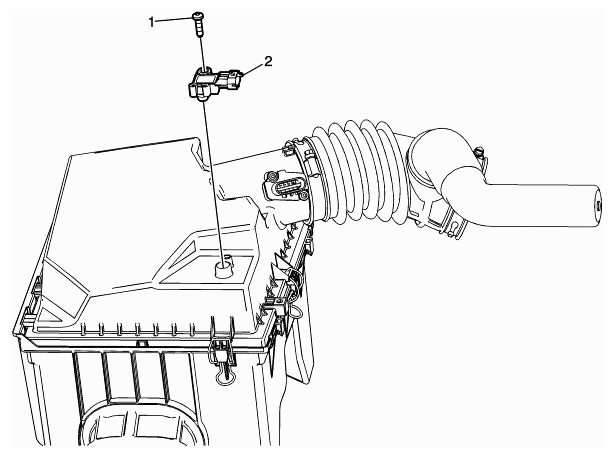

Fig 1: Identifying Throttle Inlet Absolute Pressure Sensor And Mounting Bolt (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Throttle Inlet Absolute Pressure Sensor Fastener Refer to CAUTION: RETAINER Tighten  4 Nm (35 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
