Secondary Injection Shutoff Valve Pressure Sensor Replacement

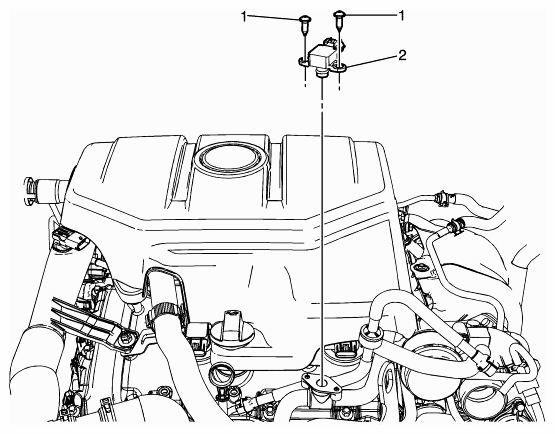

Fig 1: Identifying Secondary Injection Shutoff Valve Pressure Sensor And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Secondary Injection Shutoff Valve Pressure Sensor Fastener (Qty: 2) Refer to CAUTION: RETAINER Tighten  4 Nm (35 lb in)
2	Secondary Injection Shutoff Valve Pressure Sensor
