Installation Procedure

WARNING: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Apply a few drops of clean engine oil to the male pipe end.

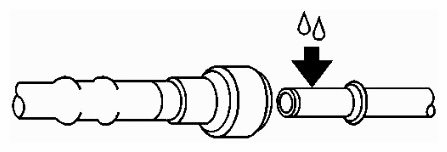

Fig 1: Applying Clean Engine Oil To Male Pipe End
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Push both sides of the quick-connect fitting together to cause the retaining tabs to snap into place.

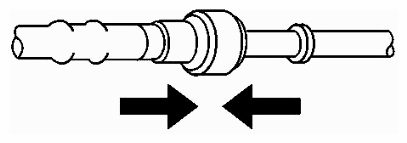

Fig 2: Pushing Quick-Connect Fitting
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pull on both sides of the quick-connect fitting to make sure the connection is secure.

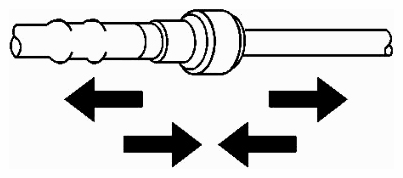

Fig 3: Checking Quick-Connect Fitting Connection
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the retainer to the quick-connect fitting.

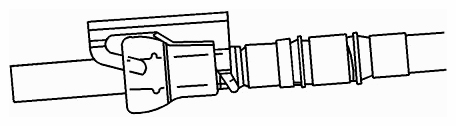

Fig 4: Identifying Quick-Connect Fitting Retainer
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Inspect for leaks using the following procedure:
1. 5.1. Turn the ignition ON, with the engine OFF for 2 seconds.
2. 5.2. Turn the ignition OFF, for 10 seconds.
3. 5.3. Turn the ignition ON, with the engine OFF for 2 seconds.
4. 5.4. Turn the ignition OFF.
5. 5.5. Inspect for leaks.
