Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LF1)

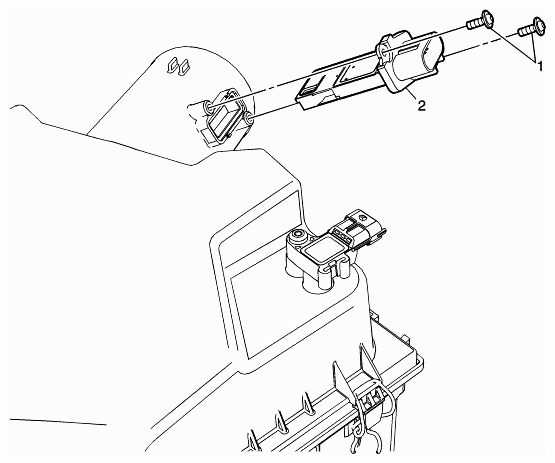

Fig 1: Identifying Mass Airflow Sensor And Mounting Bolts (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Mass Airflow Sensor Fastener (Qty: 2) Refer to CAUTION: RETAINER Tighten  3 Nm (27 lb in)
2	Mass Airflow Sensor with Intake Air Temperature Sensor Procedure  Disconnect the electrical connector.
