Manifold Absolute Pressure Sensor Replacement (LF1)

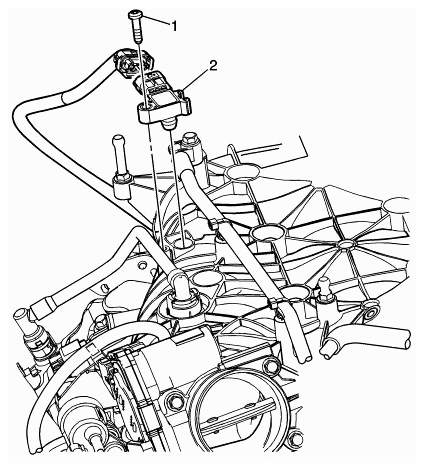

Fig 1: Identifying Manifold Absolute Pressure Sensor And Mounting Bolt (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures
Remove the intake manifold cover. Refer to INTAKE MANIFOLD COVER REPLACEMENT .
1	Bolt Refer to CAUTION: RETAINER Tighten  5 Nm (44 lb in)
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
