Engine Coolant Temperature Sensor Replacement (LAU)

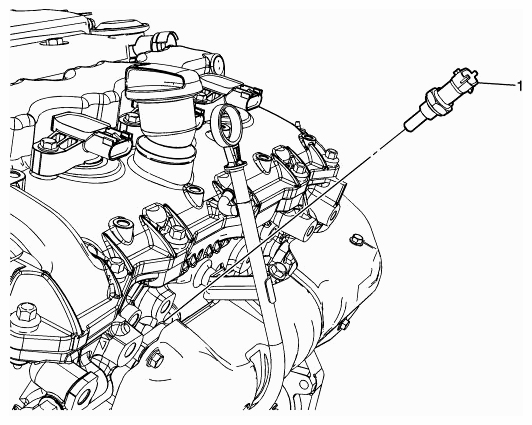

Fig 1: Identifying Engine Coolant Temperature Sensor (LAU)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the intake manifold cover. Refer to INTAKE MANIFOLD COVER REPLACEMENT . Remove the oil level indicator tube. Refer to OIL LEVEL INDICATOR TUBE REPLACEMENT (LAU) or OIL LEVEL INDICATOR TUBE REPLACEMENT (LF1 OR LFW) . Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (GE 47716) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LAU) or COOLING SYSTEM DRAINING AND FILLING (STATIC FILL LF1) .
1	Engine Coolant Temperature Sensor Refer to CAUTION: RETAINER Procedure  Disconnect the electrical connector. Tighten  22 Nm (16 lb ft)
