Installation Procedure

  1. Refer to CAUTION: RETAINER .

    Install the auxiliary negative battery cable harness (3) to the engine block with retainer (1) and bolt (2). Tighten to 45 Nm (33 lb ft).

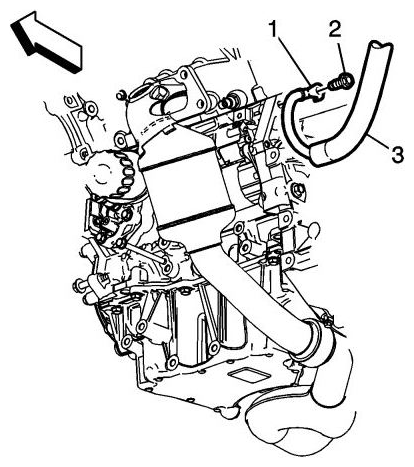

    Fig 1: Installing Negative Battery Cable Harness To Engine Block With Retainer And Bolt
    G09401768Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the auxiliary negative battery ground bolt (2) and retainer. Tighten to 22 Nm (16 lb ft).

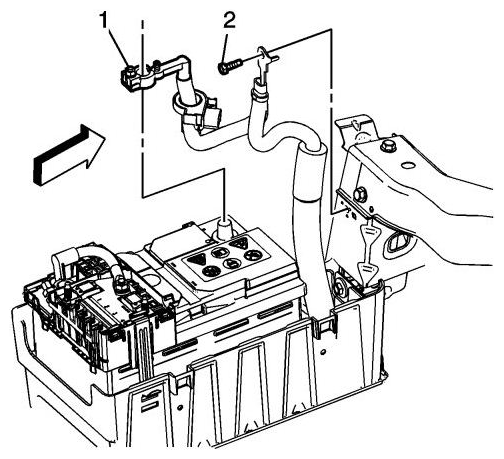

    Fig 2: Installing Negative Battery Ground Bolt And Retainer
    G09401769Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the auxiliary negative battery post clamp (1). Tighten to 9 Nm (80 lb in)
